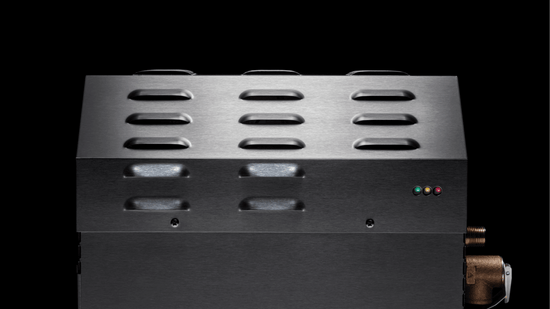

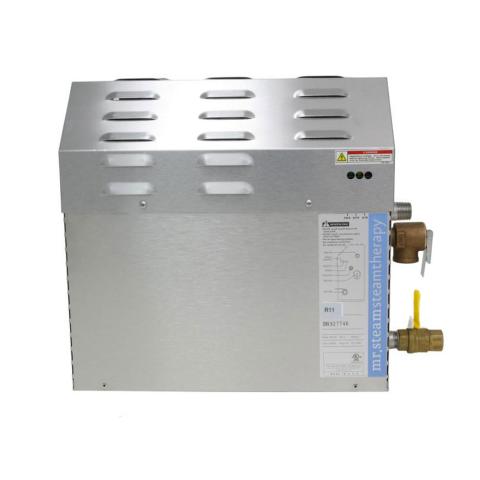

9kW Steam Shower Generator
This residential steam generator is built for reliable, quiet, and efficient performance. Made with stainless steel and industrial-grade components, it includes a smart control system, LED diagnostics, a full-port drain valve, and advanced water flow tech.
It produces steady steam using minimal water—less than 2 gallons per 20-minute session—making it eco-friendly and cost-effective.
Compact enough to install up to 60 feet from the steam room (in a closet, vanity, or cabinet), it’s compatible with all Mr. Steam controls and the SteamLinx app.
Optional features like Express Steam let you heat up faster with a built-in thermostat. Pair it with the Auto Drain system to reduce mineral buildup and extend the unit’s life.
Fully serviceable, UL listed, and backed by a limited lifetime warranty.
Required Controls and Packages sold separately
| Model | MS 400E |
|---|---|
| Minimum Adjusted Cubic Feet | 162 |
| Maximum Adjusted Cubic Feet | 257 |
| Shipping Weight (Lbs.) | 30 lbs |
| Kilowatt Rating (KW) | 9kW |
| Electrical Specifications | (refer to Electrical chart) |

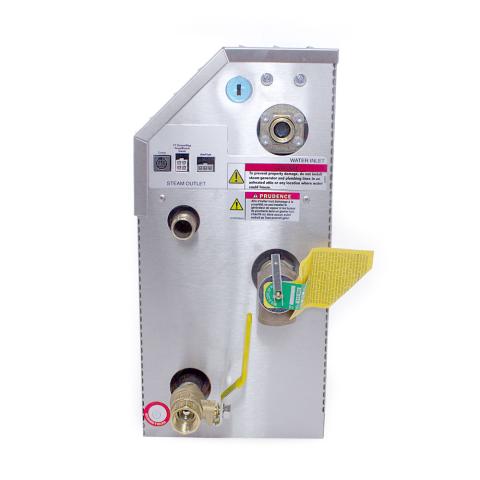

| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 1/2" NPT |
| Drain Connection | 1/2" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1" |

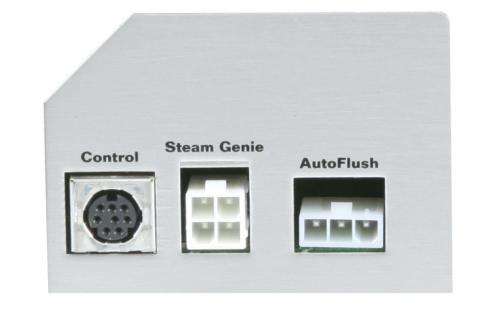

| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
| Width | 14-1/2" |
| Depth | 6-3/4" |
| Height | 14-3/4" |

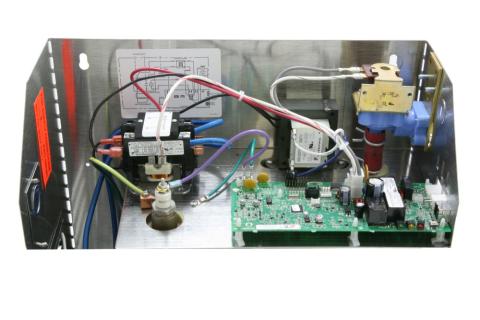

At the core of every Mr.Steam generator is an exclusive microprocessor-based operating system that functions as the brain of the unit. This smart controller continuously monitors temperature, water levels, and performance metrics to ensure consistent steam delivery and rapid response times.
The result? An indulgent, spa-quality steam experience that adapts to your preferences and maintains optimal conditions from start to finish.
Of course you want only the best: the most efficient, the cleanest, greenest, quietest, and the most reliable generator to power your home steam shower. That makes Mr. Steam Generators the obvious choice.
