Mr. Steam CX 48kW Commercial Steam Generator Package

Mr. Steam CX 48kW Commercial Steam Generator Package

by MrSteam
SKU CX2000AB3
$15,960.00 - $15,960.00
$15,960.00
$15,960.00 - $15,960.00
$15,960.00
+ Add Accessories
×

Accessories for Mr. Steam CX 48kW Commercial Steam Generator Package 208V/ 3PH (Commercial Use)

×

Accessories for Mr. Steam CX 48kW Commercial Steam Generator Package 240V/ 3PH (Home Use)

×

Accessories for Mr. Steam CX 48kW Commercial Steam Generator Package 480V/ 3PH (Commercial Use)

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Description

Features

Package Includes

Specifications

Manuals

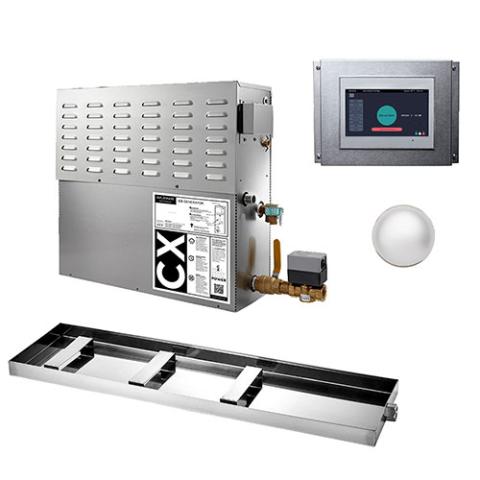

48kW Commercial Steam Generator Package

The MrSteam CX Generator Package delivers powerful, quiet performance with minimal maintenance, ideal for commercial steam environments. Featuring a stainless steel tank, AutoFlush system, Commercial SteamHead, Condensation Pan, and an intuitive CX touchscreen control, it’s designed for reliable, on-demand steam with flexible installation up to 60 feet away.

Built in the USA, this package offers efficient operation and lasting performance. A complete solution for wellness spaces that demand both durability and luxury.

Made for spaces from 1601 to 2000 cubic feet.

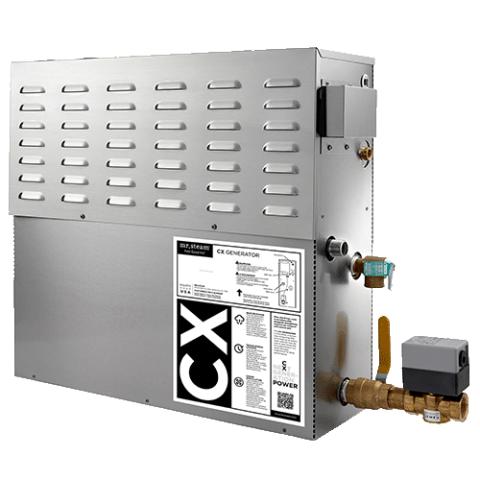

CX Generator

  • Industrial-grade, large diameter, serviceable heating element
  • Electronic water-level control system
  • Stainless steel jacket prolongs life
  • Quieter than a pressurized system
  • Program to preheat the steam room at the start of each day
  • Internal temperature shut-off to prevent low water conditions and integral high water cut-off

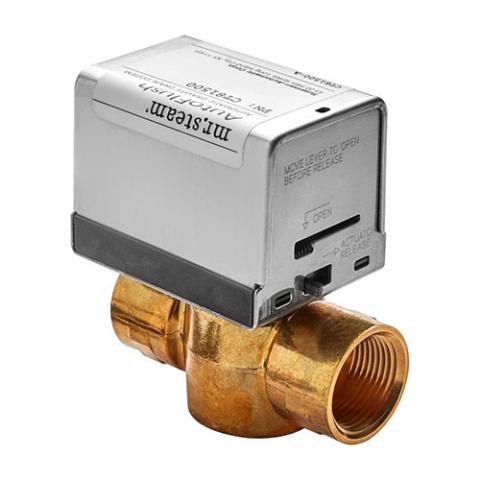

  • Factory installed AutoFlush System flushes old water and impurities promoting a healthy life for generators
  • Compact size offers more flexibility with room design and straightforward installation
  • All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly
  • Designed for commercial applications that require continuous or near continuous use so they are available to use all day
  • Dimensions: 33.9"L x 7.9"W x 22"H (per generator including factory-installed autoflush system)

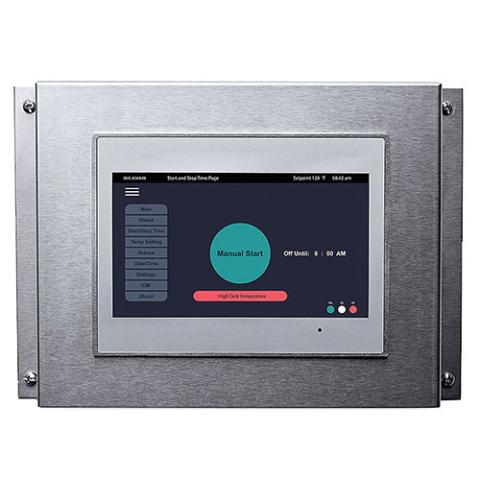

CX Control

  • 7” color touch screen control with menu driven user interface
  • Easily set on/off time and view system status while the unit is running
  • Controls multiple CX Generators in series
  • Dimensions: 7.1"L x 1.6"W x 5.3"H

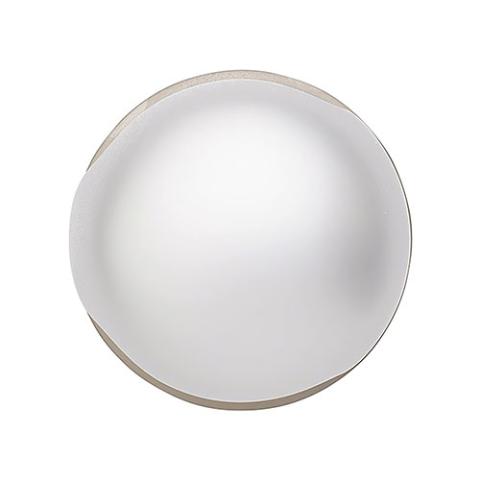

Commercial SteamHead

  • Complete with polycarbonate Acrylic Shield
  • Comes in a Polished Chrome finish
  • No assembly of moving parts required
  • Dimensions: 3.1”Diameter x 1.8”W

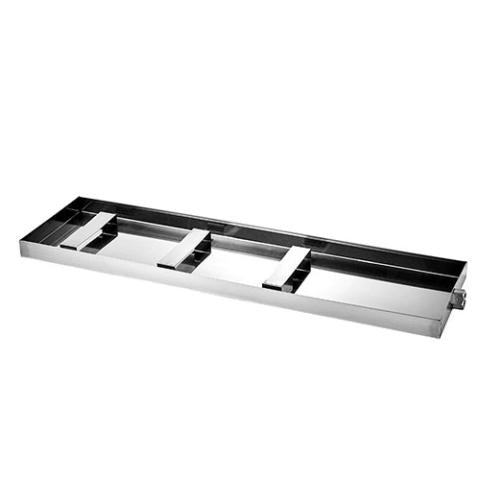

Condensation Pan

  • Protects against potential water leaks
  • Will trap and redirect the water to a predetermined area
  • Goes on a solid level surface with steam generator placed inside
  • Dimensions: 33"L x 1.5"W x 9"

CX Generator

  • CX Generators
    • CX2000 (2 x 24kW Steam Generators)
  • Installation and Operation Manual
  • 1-Year Limited Warranty

CX Control

  • CX Control
  • 1-Year Limited Warranty

Commercial SteamHead

  • Commercial SteamHeads
    • CX2000 (2)
  • 1-Year Limited Warranty

Condensation Pan

  • Condensation Pans
    • CX2000 (2)
  • 1-Year Limited Warranty
Model CX1250-CX5000
Construction Material Stainless Steel
Installation Type Hardwired
Kilowatt Rating 30kW-120kW
Wattage 30000-120000
Water Supply Connection 3/8" NPT
Drain Connection 1" NPT
Safety Valve Connection 3/4" NPT
Minimum Cubic Feet 1001
Maximum Cubic Feet 5000
Product Dimensions 33.9"L x 7.9"W x 22"H (per generator including factory-installed autoflush system)
Shipping Weight 60 lbs (per generator)
CX Control
Product Dimensions 7.1"L x 1.9"W x 5.3"H
Commercial SteamHead
Product Dimensions 3.1"Diameter x 1.8"Depth
Condensation Pan
Product Dimensions 33"L x 1.5"W x 9"H

Installation & Operation Manual

Spec Sheet

Warranty

Mr. Steam CX 48kW Commercial Steam Generator Package Details

Media 1 Media 2 Media 3 Media 4
Touch Screen Control
The CX generator interface is programmed to preheat the steam room at the start of each day. During operation, the water in the system is kept at an elevated temperature for fast steaming time.

Mr. Steam Feel Good Inc.

Steam shower benefits that promote health and wellness

Get Your Personalised Offer Today

Get your personalized discount by using our quote form.

Here's how:

  1. Locate the Quote Form: You'll find it on every product page by scrolling down.
  2. Add Products as You Browse: It functions similarly to a shopping cart. Simply add items to your quote as you expolore our products.
  3. Finalize Your Quote: Once you're finished, click 'Send' to submit your request.
  4. We will send a quote for you.

Need a bit more help? Read our Quote Form Tutorial or click the chat icon in the bottom right corner for live assistance.

Product Quantity

Thank you. We have received your quote request and will be in touch soon.

Setting up

01

Delivery

+
Sauna Shipping Image
Your Mr Steam Generator will be shipped as a FedEx or UPS package. The package, or packages will be delivered to your door. You will receive a tracking number as soon as your order has been shipped out. All our shipments are fully insured.
02

Electrical & Plumbing Requirements

+
Sauna Shipping Image
The Mr Steam 48kW Generator requires the following plumbing connections: a ¾” NPT steam outlet, ¾” NPT steam head, and ¾” NPT steam piping (not supplied), along with a 1” NPT drain outlet, 3/8” NPT water supply, and a ¾” NPT safety valve. Only rigid copper or brass piping should be used for the steam and drain lines. For full electrical and plumbing requirements, you can view the complete specifications here.
03

Steam Shower Sizing

+
Sauna Shipping Image
Mr Steam 48kW Generator is suitable for home steam showers up to 2000 adjusted cubic feet. Contact us to verify the adjusted size of your steam shower.
