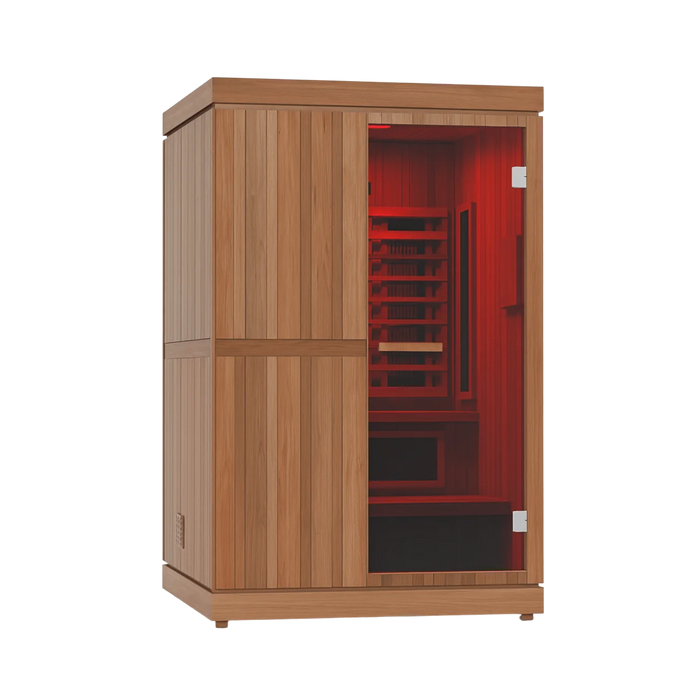

Finnmark FD-4 Trinity Infrared & Steam Sauna Combo

by Finnmark

SKU FD-KN004

$7,795.00 - $7,795.00

$7,795.00

$7,795.00 - $7,795.00

$7,795.00

Quantity

Description

Features

Health Benefits

Package Includes

Specifications

Manual

Shipping

2-Person Home Sauna with Infrared & Traditional Heater

The Finnmark FD-4 is the only sauna available that combines Finnmark’s UL listed Spectrum Plus infrared heaters combined with a traditional 120V sauna heater, plus true medical grade Spectrum Red Light™ Therapy. The sauna also includes a Bluetooth audio system and lighting to ensure you get the full experience.

Spectrum Plus™ UL Listed short wave infrared heaters for deep penetrating heat, up to 25x more than standard carbon panel heaters.
Spectrum Red Light™ Therapy. 192 Diode medical grade LED panel capable of producing highly beneficial 650nm of red light therapy combined with chromotherapy for those days you need a little love.
Antimicrobial Western Canadian cedar interior that protects against mold, bacteria and fungus.
Thermal Plus™ Aspen exterior that will never rot, warp, decay or chip. Making FinnMark Design's full spectrum infrared saunas one of the healthiest and longest lasting saunas on the market.
3-IN-ONE Combination. Compromise no more. Introducing the only combination sauna with true UL listed infrared heaters combined with a traditional heater that produces high heat steam. Get all the benefits of infrared combined with traditional rocks with steam all while soaking in the benefits of a medical grade Red light therapy LED panel.
Built-in LCD touchscreen controller with Bluetooth audio.
Audio with 6" HiFi marine grade speakers, 8mm tempered glass for the ultimate thermal retention.
Extra large two-tier bench system
Low EMF sauna tested by a NASA award winning testing facility.
High Emissivity infrared heaters

Harvia Vega Compact 1900

Wall-mounted design
Stainless Steel construction
1.9kW
For sauna rooms from 70 to 106 cu. ft.
Requires a minimum of 29 lbs of sauna stones (1 Box-AC3000)
Built-in controls
Ergonomic operating switches
Switches can be installed on the right or left side of the heater
Designed, engineered, and made in Finland
Dimensions: 11"W (279mm) x 11"D (279mm) x 21" (533mm)
2-Year Warranty (Consumer use)

Benefits of Infrared

The technology of the Spectrum Plus incoloy heaters warms your core body temperature, producing a cleaner, healthier sweat while lowering blood pressure, and maintaining heart health.
The natural heat produced by the Spectrum Plus heaters is designed to achieve a more controlled hot climate much like a traditional sauna without the unbearable heat temperatures. This deeper penetration through sweating goes beyond the muscle and fat rather than a traditional or hot air sauna. As a result, you're able to work up the best possible sweat in the least amount of time.
Spectrum Plus heaters remove 17% more toxins such as cholesterol, fat-soluble toxins, toxic heavy metals, sulfuric acid, sodium, ammonia and uric acid.
Full Spectrum Sauna combination of long-wave Spectrum Carbon 360 infrared panels with UL-listed short-wave Spectrum Plus™ infrared panels. This combination provides higher temperatures, full body coverage, deeper penetration, and better experience than any other sauna.
Reap the benefits of a more natural pain relief remedy with every infrared sauna session.
Athletes can appreciate a faster muscle recovery with increased blood flow to the muscles, delivering more concentrated oxygen and creating more energy to heal.

Bottom Panel
Top Panel
Back Panel
Front Panel
Left Panel
Right Panel
Glass Door
Bench Support
Bench Top
Heater Cable
Floor Cable
Screws
Power Supply Unit
Power Cable
Interior Heater Connections with Wood Cover
Door Handle (2 Screws)
Infrared Sauna Heater Panels
Harvia Vega Compact 1900 Sauna Heater
1 Box of the Harvia AC3000 0-10cm sauna stones (29 lbs)
Medical Grade LED Red light therapy with 650nm plus color chromotherapy
V2 LCD Controller 5" Touchscreen with Bluetooth
ETL Certification
Limited Warranty

Model	FD-4
External Materials	Thermo-Aspen
Interior Materials	Western Red Cedar
Volts	120
IR Watts	1750
Amperage	15/20
Plug Type	NEMA 5-15P
Outlet	Standard 120v 15a
Maximum Temperature	IR 170F - Traditional 190F
Interior Dimensions	44.25"W x 45.5"D x 75.5"H
Exterior Dimensions	48"W x 48"D x 83"H
Room Volume	86 cu. ft.
Door Dimensions	23.625"W x 68.875"H
Door Handle Dimensions	1.5"W x 13.25"H
Glass Thickness	8mm W/Gasket
Product Weight	437 lbs
Shipping Dimensions	36"W x 80"D
Shipping Weight	485 lbs W/48 lb Pallet

Model	Vega Compact 1900
Kilowatt Rating (KW)	1.9kW
Primary Fuel	Electric
Minimum Adjusted Cubic Feet	70
Maximum Adjusted Cubic Feet	106
Voltage	120V
Phase	1PH
Nominal Amps	15.9 Amps
Heater Weight	15.4 lbs
Shipping Weight with Sauna Stones	59.4 lbs
Width In Inches	11" (279mm)
Depth In Inches	11" (279mm)
Height In Inches	21" (533mm)

Installation and Operation Manual

FinnMark FD-4 Diagram

EMF Test Log

UL Listing

Warranty

Finnmark Certification

ETL Certification

Harvia Vega Heater Installation and Operation Manual

Harvia Suitable Sauna Stones Update

Shipping of this sauna room is FREE to the contiguous 48 states!

The weight or packaging of this product requires delivery by special appointment and on a wooden pallet. The driver is responsible for curbside delivery “only” and will lower the items to ground level.

Prior to shipping this product, the delivery company will contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.

Learn more about the materials the Finnmark FD is made of

The exterior of the Finnmark is made out of Thermal Plus™ Aspen (thermo-aspen), which is considered one of the best options to choose from. The interior is from Western Canadian cedar, bringing the beautiful look of cedar to the cabin.

Finnmark FD-4 construction

The 2-person infrared sauna from Finnmark Designs uses high-quality materials for both aesthetic appeal and durability. The interior is constructed with Western Canadian Red Cedar, valued for its antimicrobial properties, aromatic quality, and natural resistance to decay. The cedar is clear meaning it is knotless.

The exterior is made from Thermal Plus™ Aspen, which is known for its stability and resistance to warping, rot, and decay, making it ideal for long-term use in saunas. Thermal Plus means the Aspen has gone through a thermal modification process that makes it withstand high temperatures. These materials create a natural and luxurious environment, enhancing the sauna's overall longevity and performance.

The FD-4 has fully insulated walls for maximum heat retention.

48"

Exterior Width

48"

Exterior Depth

83"

Exterior Height

Finnmark FD-4 Trinity Infrared & Steam Sauna Combo Details

Red light therapy

Red light therapy is a type of phototherapy that uses low-level light wavelengths to penetrate the skin and stimulate the production of collagen and other proteins, which can lead to numerous potential health benefits. It’s a perfect enhancement to your sauna wellness ritual.

Controller

This cabin features a built-in LCD touchscreen and Bluetooth audio. The audio system has 6” HiFi speakers to ensure good quality audio when you are enjoying the heat of the infrared sauna.

The LCD touchscreen can be also used to control the interior lighting.

Lighting

The cabin includes lighting, which can be set on the controller. There are multiple different colours to choose from.

The lighting is located on the roof of the cabin.

Ventilation

This cabin has a ventilation vent inside. The intake vent is located near the sauna heater. The exhaust vent is on the roof.

If there is need for more cooling, you can simply open the door to let in more air.

Setting up

Unloading

You will get a sauna crate/pallet delivered to your yard when you order this sauna. The pallet is 36"W x 80"D. The delivery driver will be responsible for curbside delivery and will lower the items to ground level.

The pallet weighs 485 lbs.

Electrical Requirements

The IR panels, red light therapy, and the traditional sauna heater are all powered by a standard 120V and can be plugged into a common outlet, so no electrician is needed.

The plug type is a NEMA 5-15P

Placement

You need a sturdy and level surface for this cabin. Consider where you want to locate it, for example placing it in the bedroom might not be the best idea.

Finnmark FD-4 showcase video

Check out this video we made on the FD-4
