Harvia Chimey Extensions

by Harvia

SKU WHP500

$373.00 - $568.00

$373.00

$373.00 - $568.00

$373.00

Quantity

Description

WHP500

WHP500M

WHP1000

WHP1000M

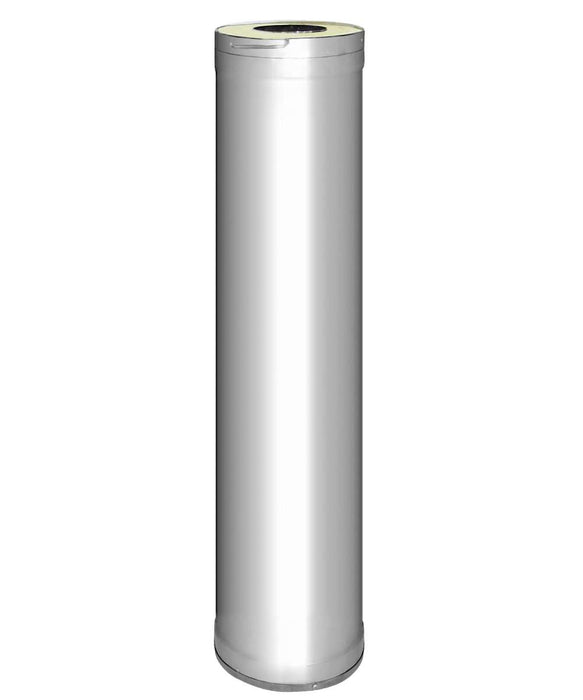

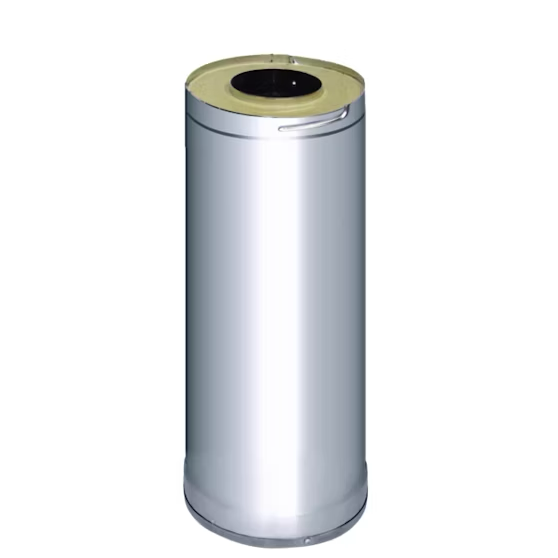

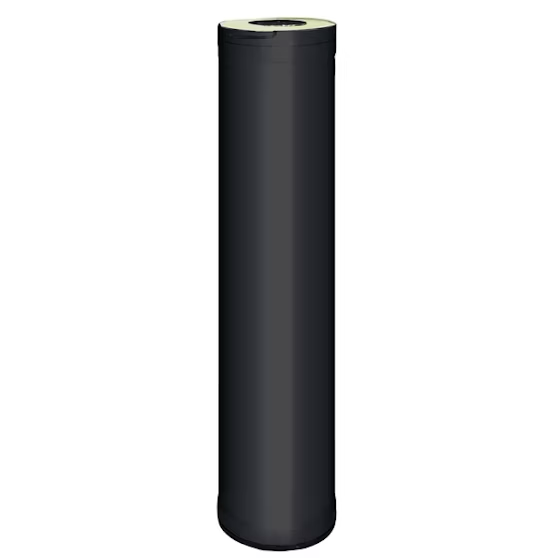

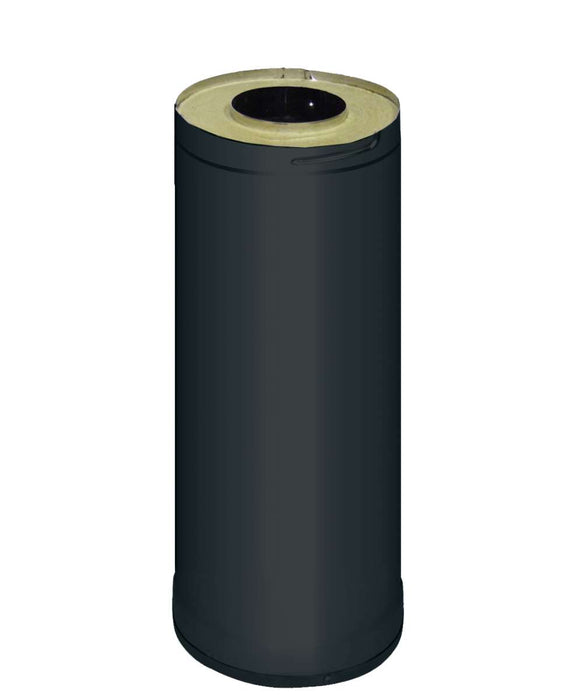

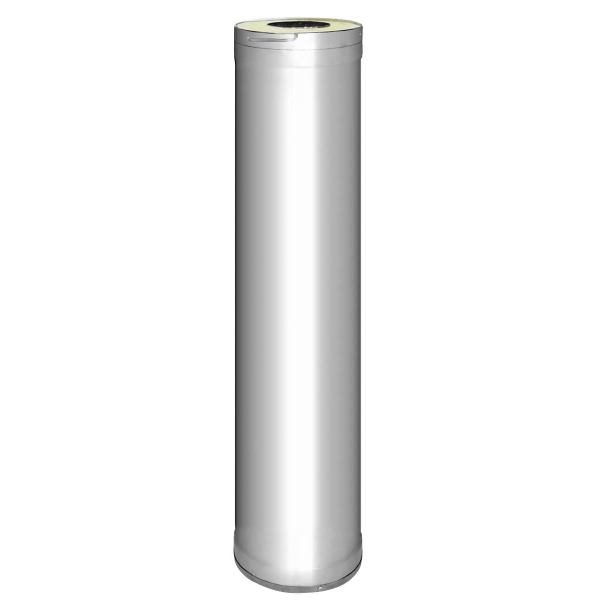

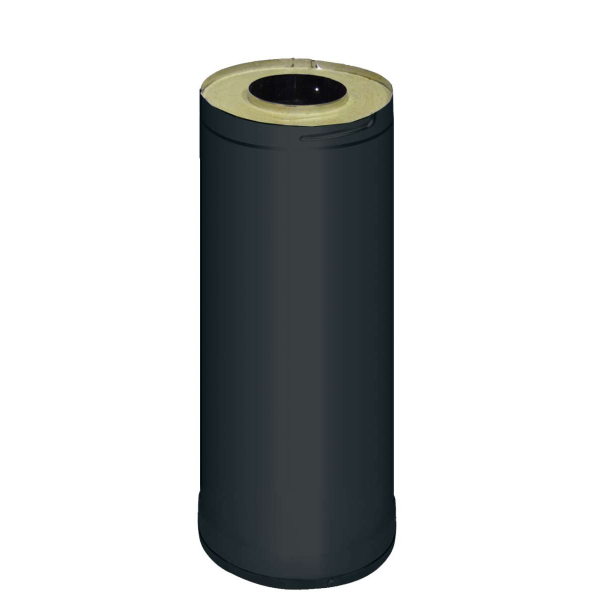

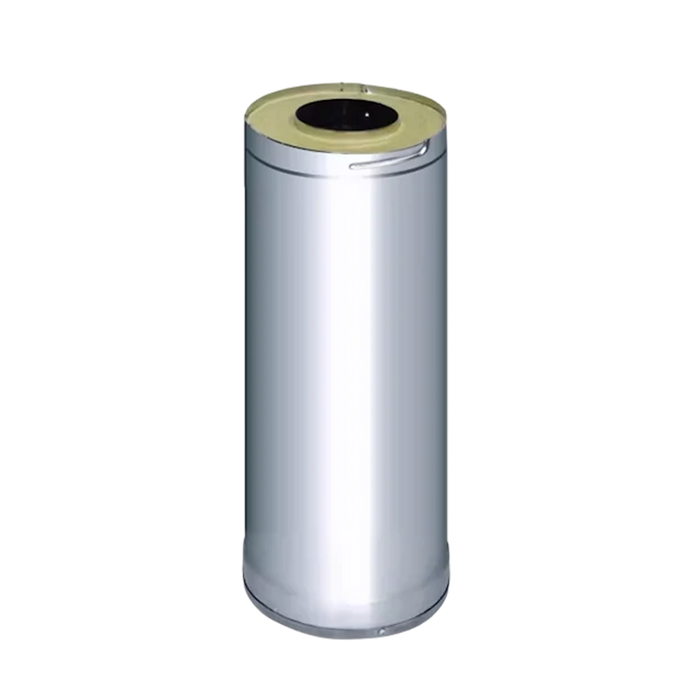

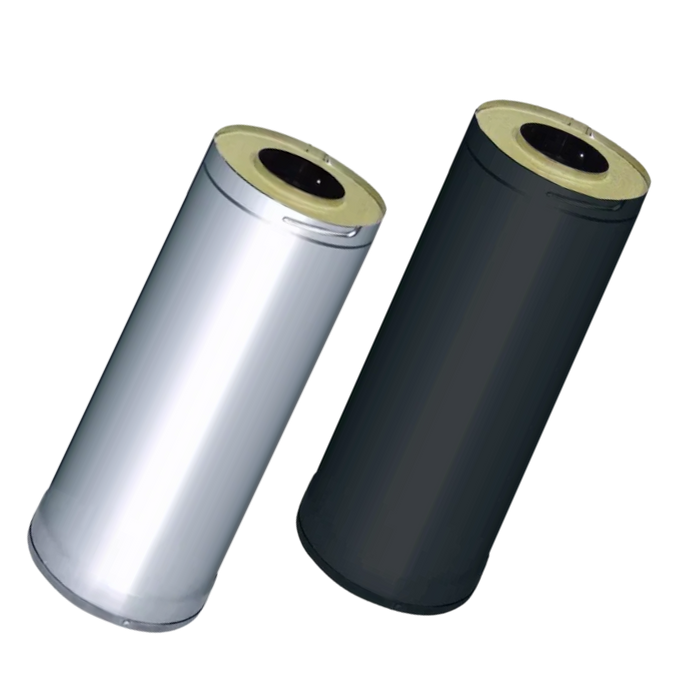

Harvia Wood Heaters Chimney Extensions

The stainless steel chimney extension is designed to minimize movement resulting from temperature fluctuations. Crafted from durable stainless steel, it is suitable for installation both indoors and outdoors.

Its joint mechanism and supplementary parts are threaded together, while the smoke pipes are securely locked in place using grooves. These thoughtful design features help stabilize the chimney structure and reduce shifting due to heat expansion and contraction.

Model	WHP500
Material	Stainless Steel
Flexural Strength- tensile strength	16.4 ft (5m)
Non-vertical installations	Not Allowed
Height	19.6" (500mm)
Diameter	8.6" (220mm)
Weight	7.7 lbs

Manual

Model	WHP500M
Flexural Strength- tensile strength	16.4 ft (5m)
Non-vertical installations	Not Allowed
Wind Load	6.5 ft (2m) above last support
Maximum spacing of lateral supports	9.8 ft (3m)
Weight	7.7 lbs
Diameter	8.6" (220mm)
Height	19.6" (500mm)

Manual

Model	WHP1000
Material	Stainless Steel
Flexural Strength- tensile strength	16.4 ft (5m)
Non-vertical installations	Not Allowed
Wind Load	6.5 ft (2m) above last support
Maximum spacing of lateral supports	9.8 ft (3m)
Weight	14.8 lbs
Diameter	8.6" (220mm)
Height	39.3" (1000mm)

Manual

Model	WHP1000M
Flexural Strength- tensile strength	16.4 ft (5m)
Non-vertical installations	Not Allowed
Wind Load	6.5 ft (2m) above last support
Maximum spacing of lateral supports	9.8 ft (3m)
Weight	14.8 lbs
Diameter	8.6" (220mm)
Height	39.3" (1000mm)

Manual
