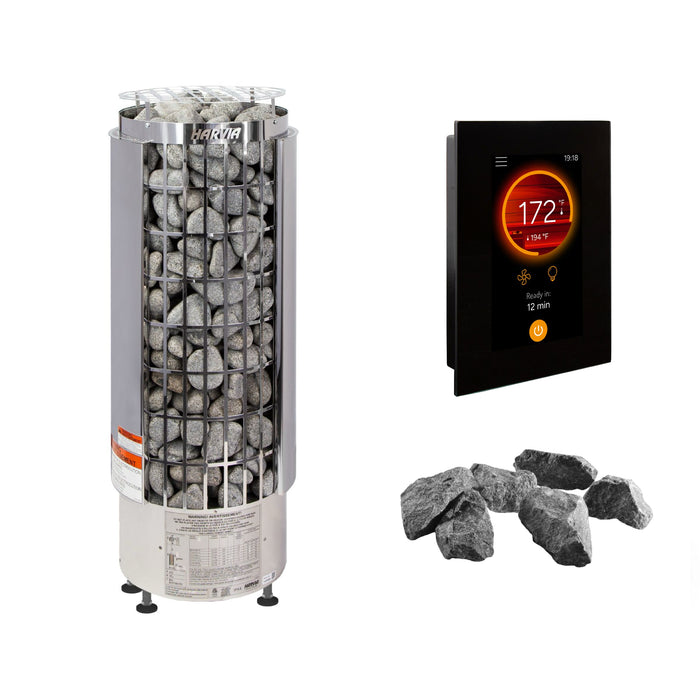

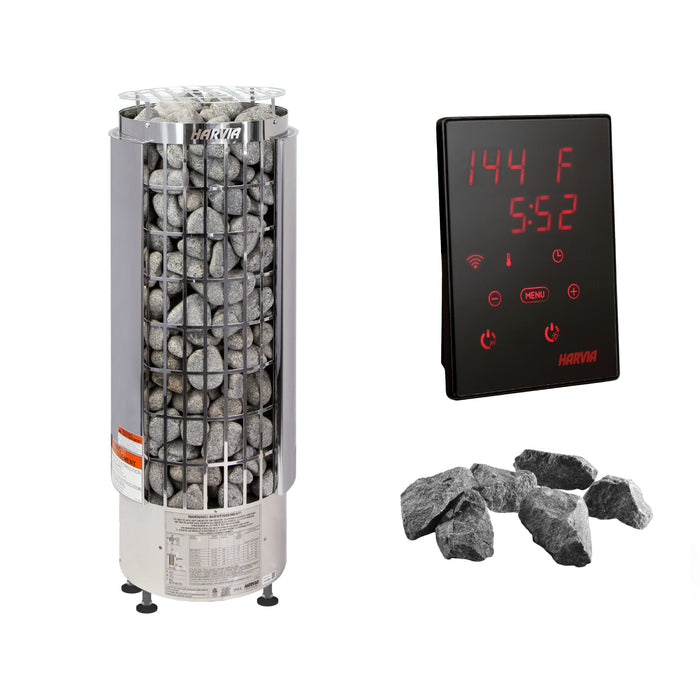

Harvia Cilindro PC110E 10.5 kW Electric Sauna Heater Package
The Harvia Cilindro PC110E Sauna Heater Package combines convenience with expertise to deliver reliable sauna heater performance in every session. This all-in-one kit comes with everything you need for operation: the Harvia Cilindro Heater, your choice of external controller, and 265 lbs. of stone.
Harvia Cilindro PC110E Heater
Discover the perfect sauna environment with the Harvia Cilindro PC110E 10.5 kW 240V/1Ph Electric Sauna Heater. Built with an open-air stone cage at the front, this heater encourages water-pouring and lets you adjust the intensity of the steam depending on where you pour. For sharp bursts, pour directly on the top of the heater. For soft, gentle steam, pour on the stones halfway up the heater. Both options create a different sauna experience.
The huge 265 lb. stone capacity promotes lasting heat stability, producing temperatures up to 194℉. While the heater gets hot, the built-in heat shield protects your walls and minimizes safety distances, expanding your placement options for more control over your layout. The Harvia Cilindro fits saunas ranging from 318 - 636 ft3 (adj.), delivering reliable performance in every session.
Harvia Cilindro Controller
The Harvia Cilindro uses an external controller that lets you dial-in the perfect sauna environment. There are two options available with this package: the Xenio CX45 and the Fenix FX45.
-
Xenio CX45: Touchscreen controller that gives you the power to adjust your sauna and schedule sessions through the MyHarvia App.
-
Fenix FX45: Touchscreen controller with integrated AI that adapts to deliver the perfect sauna experience. Includes 3 customizable heating profiles and allows for scheduling and adjustment through the MyHarvia App.
These controllers can be linked to the sauna’s lighting, ventilation, fans, and timers, offering an all-in-one sauna control destination. Both the Xenio and Fenix are compatible with the MyHarvia App, giving you the power to adjust and operate your sauna right from your smartphone.
Harvia Cilindro Heater
1x Harvia Cilindro PC110E 10.5 kW Sauna Heater
1x Harvia Cilindro PC110E Installation and Operation Manual
Harvia External Controller
Xenio CX45
1x Harvia Xenio CX45 External Controller
1x Power Unit
1x Temperature Sensor
1x Installation & Operation Manual
Fenix FX45
1x Harvia Fenix FX45 External Controller
1x Power Unit
1x Data Cable
1x Temperature Sensor
1x Installation & Operation Manual
Harvia Cilindro Stone Package
6x 44 lb. Boxes of Harvia AC3000 Sauna Stones (264 lbs.)
| Model |
Cilindro PC110E |
| Heater Type |
Electric |
| Sauna Size Range |
318 - 636 ft3 (adj.) |
| Stone Capacity |
265 lbs |
| Maximum Temperature |
194℉ |
| Kilowatt Rating |
10.5 kW |
| Heater Weight |
46.3 lbs |
| Shipping Weight w/ Stones |
240 lbs |
| 240V, 1 Ph Amperage (1-Group) |
43.75 Amps |
| 240V, 1 Ph Amperage (2-Group) |
29.2 Amps |
| 240V, 1 Ph Wire Size (1-Group) |
6 AWG |
| 240V, 1 Ph Wire Size (2-Group) |
8 AWG |
| Heater Dimensions |
45”H x 16”W x 15”D |
| Safety Distances* |
Heater: Installation & Operation Manual
CX45: Installation & Operation Manual
FX45: Installation & Operation Manual
|
*Reference Installation & Operation Manual for full specs/wiring diagrams/safety distances
The Harvia Cilindro PC110E 10.5 kW Sauna Heater Package is recommended for saunas ranging from 318 - 636 ft3 (adj.).
- You must calculate your sauna’s Adjusted Cubic Feet to choose the right heater size. This accounts for cold surfaces like glass, tile, and natural rock wall segments.
Need assistance? Click the green chat button in the bottom right corner of your screen or call one of our Sauna Experts for help sizing your heater.
Harvia Cilindro PC110E Heater Manuals
Xenio CX45 Controller Manuals
Fenix FX45 Controller Manuals
