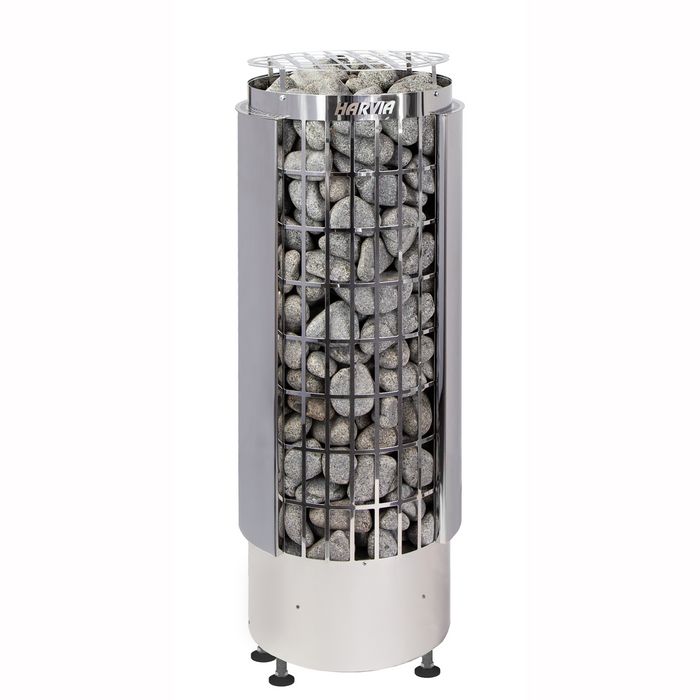

Harvia Cilindro PC80E 240V Sauna Heater

by Harvia

SKU HPCS8U1H

$1,233.00 - $1,233.00

$1,233.00

$1,233.00 - $1,233.00

$1,233.00

+ Suitable Accessories

Required to Operate

You'll need a control package. Controllers differ in looks and capabilities.

Wi-Fi

Sauna Heater Controller

Harvia Xenio CX30 WiFi Sauna Control

$945.00

Wi-Fi

Sauna Heater Controller

Harvia Fenix FX30 WiFi Sauna Control

$1,181.00

Sauna Heater Stones

Harvia Stone Package for Cilindro

$290.00

Optional Accessories

Optional Safety Accessories to Finish Your Setup

Sauna Heater Accessories

Harvia Embedding Flanges - HPC2

$204.00

Sauna Heater Accessories

Harvia Embedding Flanges - HPCU2L (LED)

$300.00

Sauna Heater Accessories

Harvia Cilindro Safety Rails - HPC3

$266.00

Sauna Heater Accessories

Harvia Cilindro Safety Rails - HPCU3L (LED)

$557.00

Quantity

This Configuration:

8kW (212 - 431 ft³)

Calculate Heater Size

Other Configurations:

6kW (141 - 294 ft³)

9kW (282 - 494 ft³)

10.5kW (318 - 636 ft³)

Description

Features

Package Includes

Specifications

Manuals

Returns

Harvia Cilindro Half Series 8kW Sauna Heater with External Controls

The Harvia Cilindro PC80E is a stylish pillar-type sauna heater brings the benefits of the pillar design to households. Thanks to the grate-like outer shell, you can adjust the nature of the steam: throwing water on the side gives you a softer steam, and throwing or dropping water straight to the top of the stone gives you a sharper more powerful steam. Since this heater is made for households it is only available in 240V/1PH.

Side-wall or corner of room install
Stainless Steel construction
For sauna rooms from 141 to 431 cu. ft.
Stainless Steel elements
Direct rock-to-heating element contact
Industrial grade, serviceable heating elements
Designed, engineered, and made in Finland
Requires a minimum of 200lbs of stones (5 box-AC3000)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function.

Harvia Cilindro PC80E Sauna heater
Installation and operation manual

To operate your sauna heater, you will need to purchase Harvia Cilindro Stones and Harvia Xenio WiFi Control package separately. You can easily add these by pressing + above the add to cart button on this page.

Model	Cilindro PC80E
Kilowatt Rating (KW)	8 KW
Primary Fuel	Electric
Minimum Adjusted Cubic Feet	141
Maximum Adjusted Cubic Feet	431
Voltage	240
Phase	1
Nominal Amps	33.4 Amps
Heater Weight	37.5 lbs
Shipping Weight with Sauna Stones	257.5 lbs
Width In Inches	14" (355mm)
Depth In Inches	13" (330mm)
Height In Inches	40" (1016mm)

Installation and Operation Manual

Stone Requirements

Warranty

Harvia Elements

Cancellations

You can cancel your order, before the product has shipped, free of charge. We will initiate a 100% refund on orders canceled before shipping.

Returns

The Harvia products have a 30 day return policy. Meaning that you can return the product as long as you let us know that you want to initiate a return during the 30 day period starting from the date the product is delivered to you.

You can return this Harvia product if it is unused. Meaning you have not tried to install the product, nor used it in any way. If you have received your product with free shipping, you’re responsible for the return shipping cost. You will also have to pay a restocking fee of 35% from the final purchase price of the item you return. In case you return your product, once we have inspected it at the warehouse, and verified it’s unused, we will refund the card you used to purchase the Harvia according to this policy.

Product Details

Design

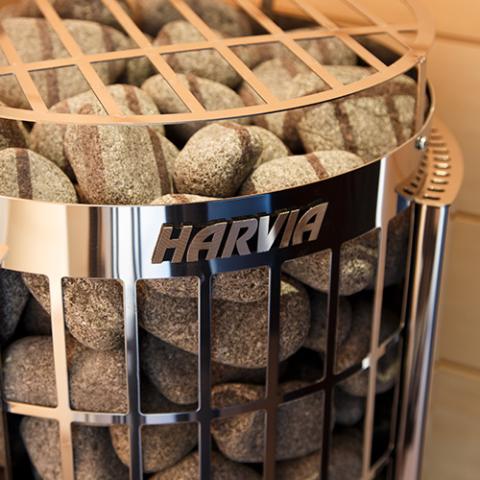

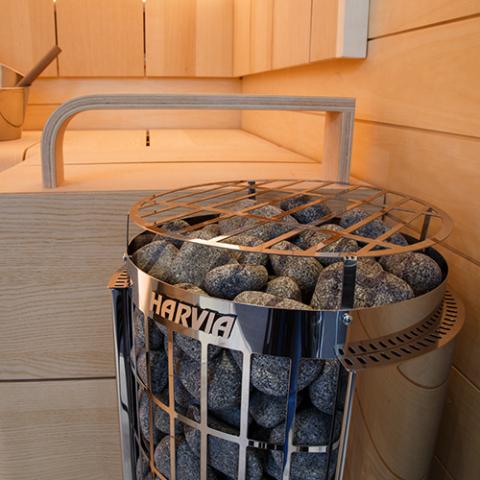

The Harvia Cilindro is a freestanding pillar-design sauna heater that is made out of stainless steel. The heater features a stainless steel cage that shows off the rocks.

The Cilindro has a large rock capacity of 200 lbs.

Steam

With the Cilindro you can adjust the nature of the steam: throwing water on the side gives you a softer steam, and throwing or dropping water straight to the top of the stone gives you a sharper more powerful steam.

All Harvia heaters go up to 195F and this heater is no exception.

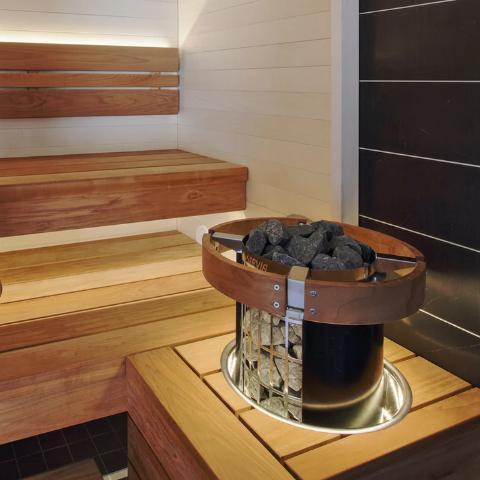

Heater Placement

This Pilar model sauna heater gives you more freedom when you design your sauna. As it is a freestanding heater it is possible to place it in the corner, or in the middle of the sauna, up to your preference.

Sauna Control

The heater is controlled by an external controller. With its elegant touchscreen design, the sauna heater controls may be surface or flush-mounted and adjust for time duration, temperature, and room lighting. There is also a Wi-Fi option for turning the heater on remotely.

Setting up

Delivery

The Harvia Cilindro is shipped on a wooden pallet. You will receive a tracking number as soon as your order has been shipped out. All our shipments are fully insured. Harvia products are shipped from Chicago. The pallet will be delivered to your curbside. The carrier will call you to set up the delivery of the pallet before delivery. Shipping is free. For white glow delivery or express shipping options, contact us.

Electrical Requirements

The Harvia Cilindro PC80E will require a 240V/1PH power line. You will need a 40 Amp circuit breaker and your electrician needs to use wire sizes 8 and 12 AWG.

Sauna Sizing

Harvia Cilindro PC80E sauna heater is suitable for home saunas up to 431 adjusted cubic feet. Use our calculator or contact if you want to verify the size of your sauna.
