Harvia Linear 16 Sauna Stove + Stones + Chimney + Protective Base Package
Everything you need for a safe, ready-to-install Harvia wood-burning sauna setup — all in one package.
This bundle includes the Harvia Linear 16 wood sauna stove with stones, the insulated chimney kit, and the floor-protective bedding plate, giving you the complete heating system from the heater to the ceiling pass-through.
This package is designed for small- to medium-sized, traditional wood-burning saunas. It provides steady, efficient heat for rooms between 212 – 565 ft³ (6 – 16 m³). If unsure, use our sauna heater size calculator to calculate your room size.
The WHP1500 / WHP1500M Chimney Kit is a UL-listed system that fits all Harvia wood-burning stoves with a 4.5" (115 mm) flue outlet. It’s suitable for indoor or outdoor use and installs through the ceiling or wall (wall thimble required for side exits). The included smoke pipe and 59" chimney section together reach about 9–10 ft total height, ideal for standard sauna ceilings.
The WL110 Floor Plate provides a non-combustible, heat-safe base under the stove.
Together, they form a complete, ready-to-install system from stove to roof.
-

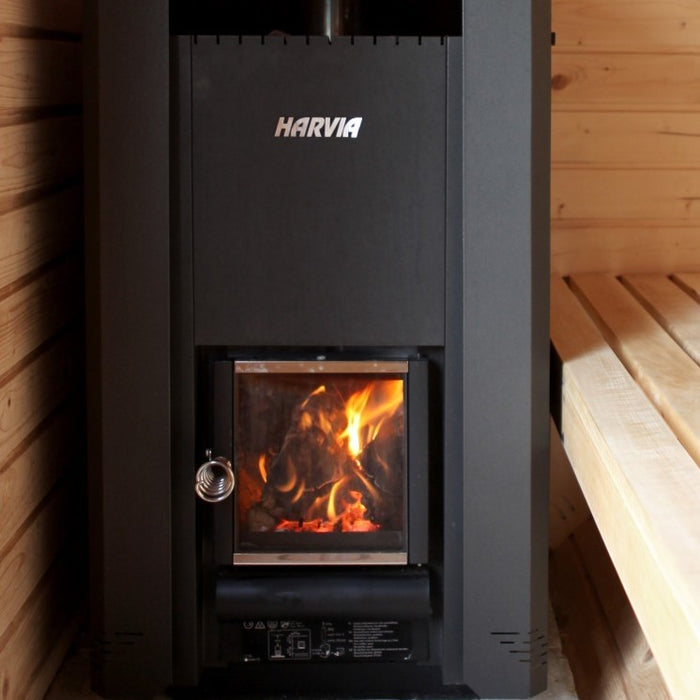

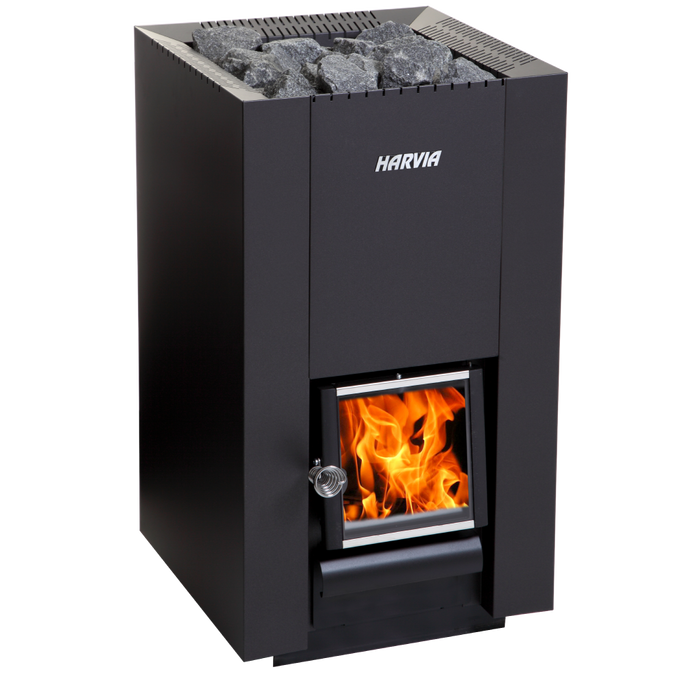

Harvia Linear 16 Wood Sauna Stove (WK160C)
17.9 kW wood-burning heater for medium-sized saunas. Made in Finland. Features a cast-iron glass door for viewing the fire, even heat output, and durable steel construction.
-

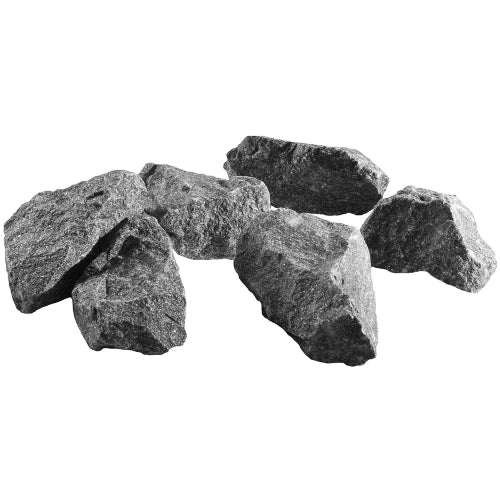

Harvia Sauna Stones (AC3020, 2 boxes included)
-
Harvia Chimney Package
Complete 59" insulated chimney kit with all required mounting hardware, utility box, and through-ceiling/wall installation parts. Certified for wood-burning sauna use.
-
Harvia Protective Bedding Floor Plate (WL110)
Black-steel heat-shielding base plate that protects the floor beneath the stove from heat radiation and sparks, matching the stove’s finish.
Everything you need to safely vent your Harvia wood-burning sauna stove - all in one box. No extra parts are required for a standard through-ceiling installation in a typical 8–9 ft sauna room.
✅ What’s Included
-
1 × 1500 mm (59") insulated chimney section — runs from the ceiling through the roof
-
1 × starting/smoke pipe — connects the stove to the insulated chimney (included)
- Mounting bracket & support/utility box
- Roof flashing & rain/termination cap
- Ceiling pass-through with insulation components
- All required clamps, adapters & hardware
- Installation manual
Certification: UL-103 HT (U.S. & Canada), high-temperature listed.
📏 Height & Fit
- The 59" insulated chimney section starts above the ceiling.
- The included smoke pipe runs from the top of the stove up to the ceiling.
- Typical total installed height ≈ 9–10 ft from floor to chimney cap (ideal for most 8–9 ft rooms).
- Need more height? Add Harvia extensions (WHP500 / WHP1000) above the insulated section.
- Doing a through-wall install? Use a Harvia Wall Thimble Kit (sold separately).
🧱 Compatibility
- Designed for Harvia wood-burning stoves including Linear 16 included in this package.
-
Direct connection to the stove outlet — no extra adapters needed for standard setups.
- Suitable for indoor or outdoor saunas.
🎨 Finish Options
| Model |
Finish |
Best Match |
| WHP1500 |
Brushed stainless steel |
Traditional/light interiors |
| WHP1500M |
Black powder-coated steel |
Modern/dark interiors; matches black stoves (e.g., Linear 16, Legend Black) |
💡 In Plain Terms
You get everything from the stove to the roof cap in this kit. No guessing, no extra adapters, no hidden parts. For taller roofs, add an extension. For wall exits, use a wall thimble kit.
🔥 Harvia Linear 16 Wood Sauna Stove
| Model |
WK160C |
| Power Output |
17.9 kW |
| Fuel Type |
Wood |
| Main Material |
Steel |
| Stone Size |
10–15 cm |
| Width |
16.54" (420 mm) |
| Depth |
17.72" (450 mm) |
| Height |
29.94" (735 mm) |
| Weight |
102.7 lbs (46.6 kg) |
| Certifications |
CE & EAC |
Medium-sized Finnish wood-burning stove with a cast-iron glass door and even heat distribution.
🌪️ Harvia WHP1500M Chimney Package
| Model |
WHP1500M |
| Length |
59" (1500 mm) |
| Inner Diameter |
4.5" (115 mm) |
| Outer Diameter |
4.9" (125 mm) |
| Material |
Double-wall stainless steel
with black powder-coated finish |
| Certifications |
UL-103 HT (U.S./Canada), CE, EAC |
| Max Temperature |
2100 °F (intermittent)
1000 °F (continuous) |
| Weight |
49 lbs (22.3 kg) |
| Installation |
Through-ceiling or through-wall
(with wall thimble kit) |
Complete UL-listed chimney system with smoke pipe, ceiling pass-through, flashing, and rain cap — everything from stove to roof.
🛡️ Harvia WL110 Protective Floor Plate
| Model |
WL110 |
| Material |
Black Steel |
| Width |
24" (610 mm) |
| Depth |
32" (810 mm) |
| Height |
1.5" (38 mm) |
| Weight |
17.6 lbs (8 kg) |
| Purpose |
Protects floor from heat and sparks
under the stove |
Provides a safe, non-combustible base beneath your Harvia stove. Matches the black finish of the Linear 16 and chimney.
