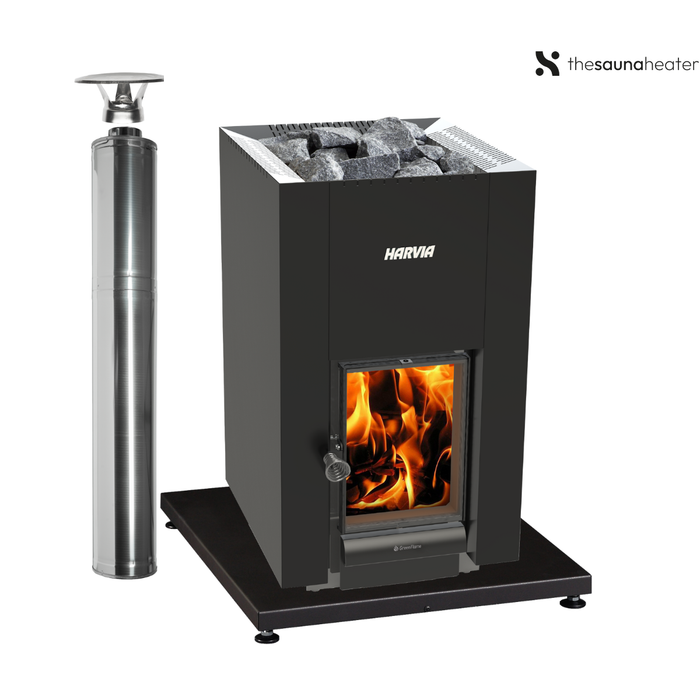

Harvia Linear 22 Sauna Heater Package

This package is designed for small- to medium-sized, traditional wood-burning saunas. It provides steady, efficient heat for rooms between 353 – 777 ft³ (10 – 22 m³). If unsure, use our sauna heater size calculator to calculate your room size.

The WHP1500 / WHP1500M Chimney Kit is a UL-listed system that fits all Harvia wood-burning stoves with a 4.5" (115 mm) flue outlet. It’s suitable for indoor or outdoor use and installs through the ceiling or wall (wall thimble required for side exits). The included smoke pipe and 59" chimney section together reach about 9–10 ft total height, ideal for standard sauna ceilings.

The WL110 Floor Plate provides a non-combustible, heat-safe base under the stove.

Together, they form a complete, ready-to-install system from stove to roof.

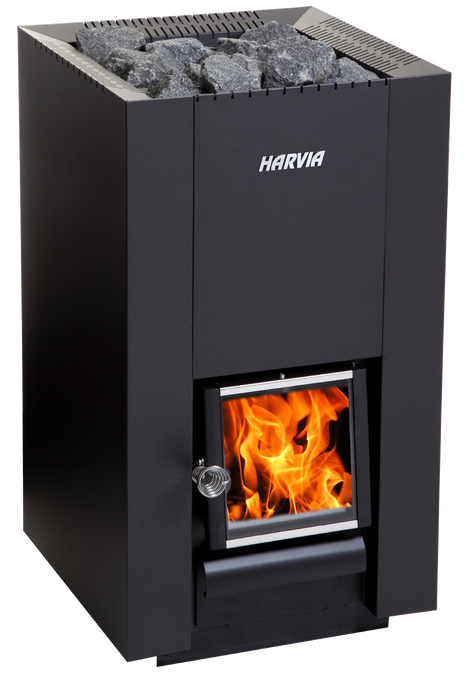

• Harvia Linear 22 / Linear 22 GreenFlame Wood Sauna Stove
  22 kW wood-burning heater for medium to large sauna rooms (353 – 777 ft³ / 10 – 22 m³).
  Made in Finland. Features a cast-iron glass door for viewing the fire, smooth and even heat output, and durable steel construction.

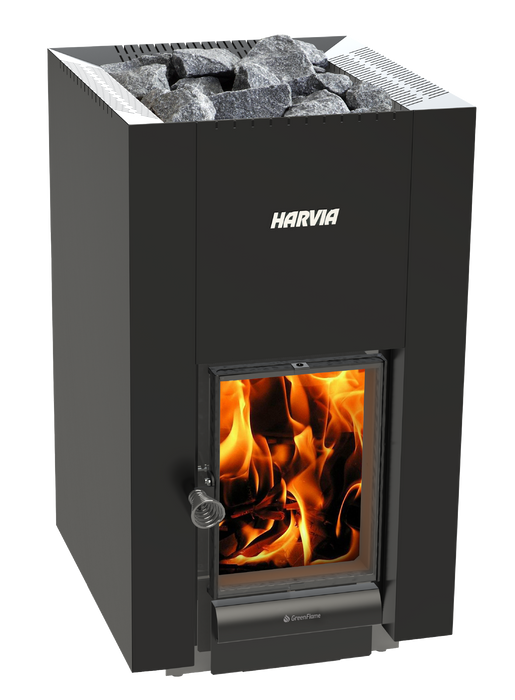

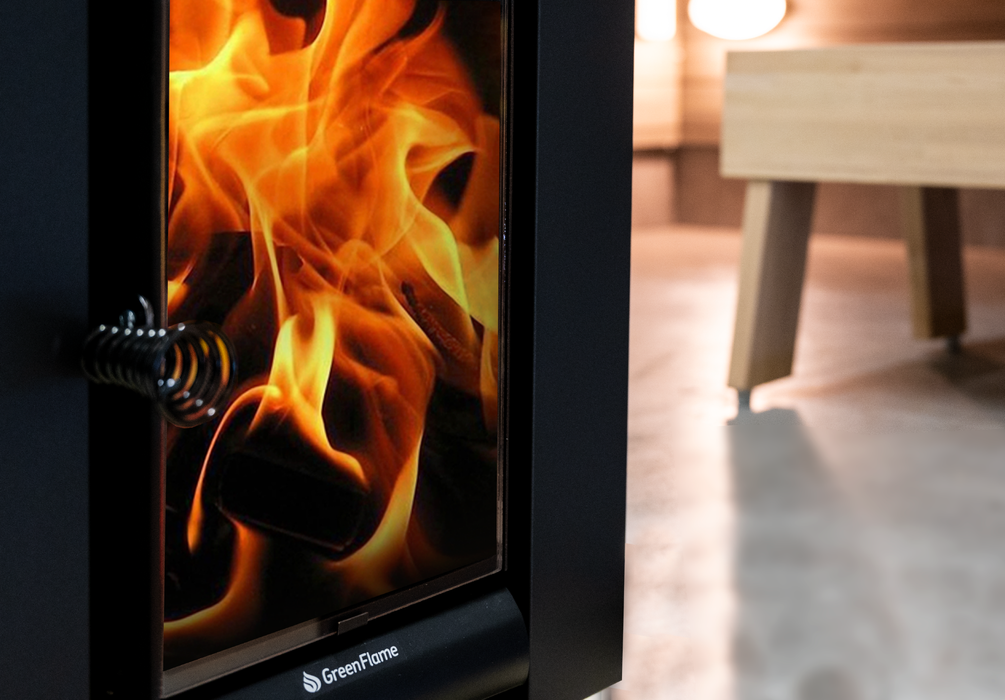

  The GreenFlame version offers cleaner combustion with reduced wood consumption and lower emissions.
• Harvia Sauna Stones (AC3020 – 2 boxes included)
  High-density stones selected for even heat storage and soft steam generation.

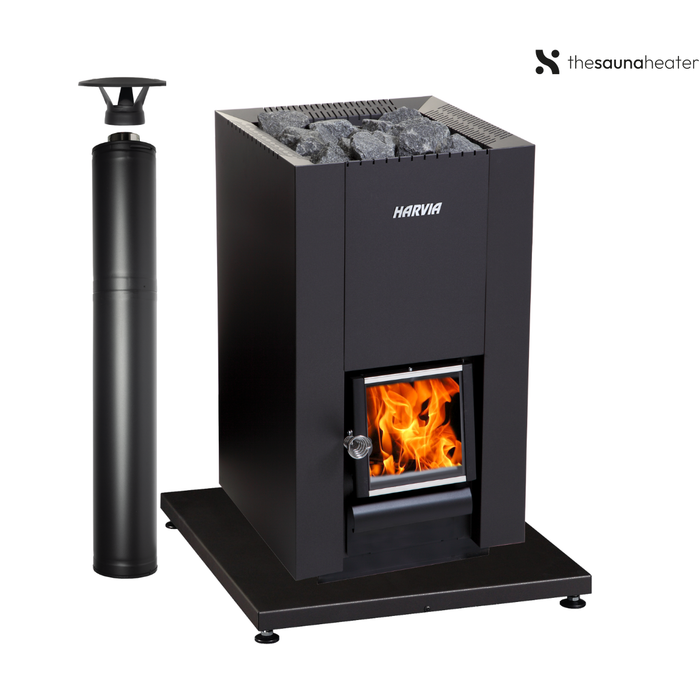

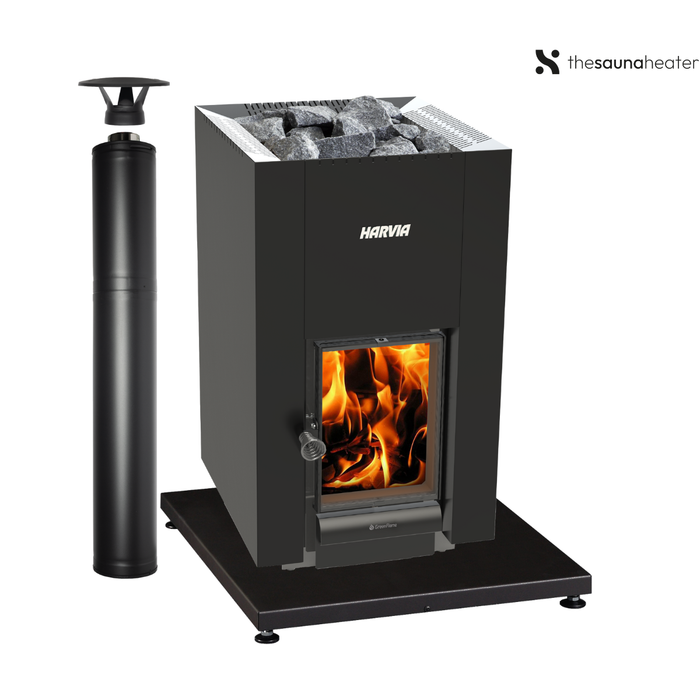

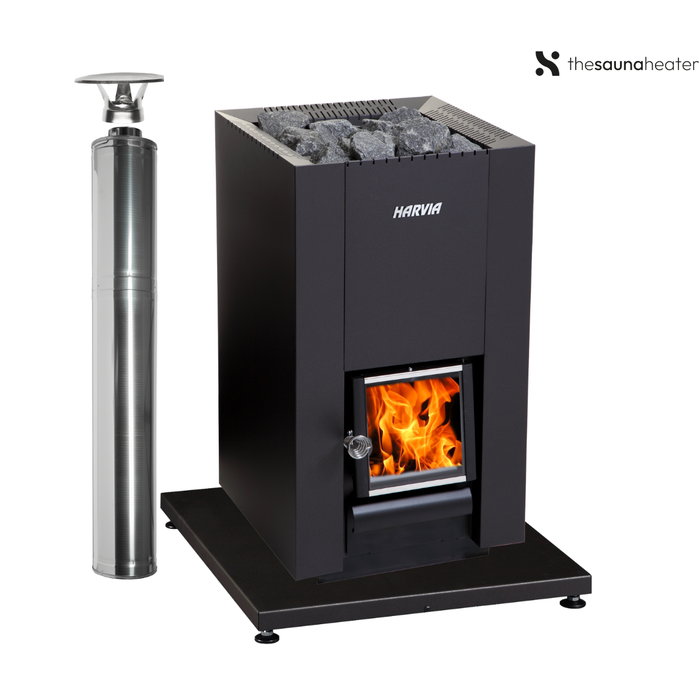

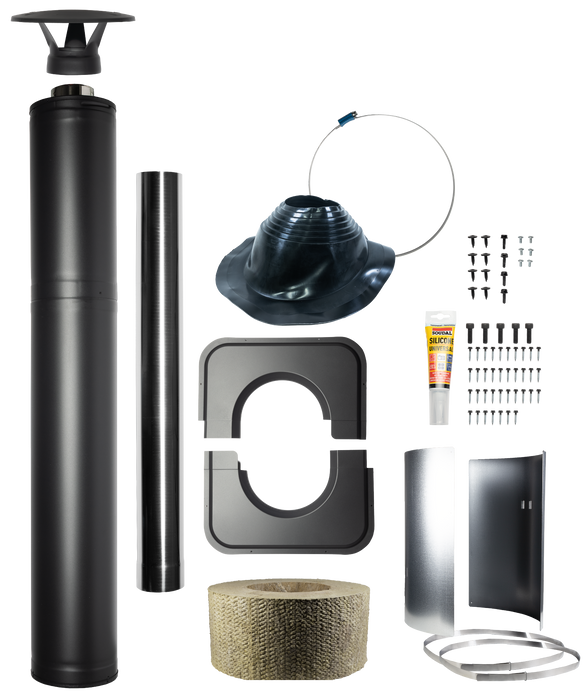

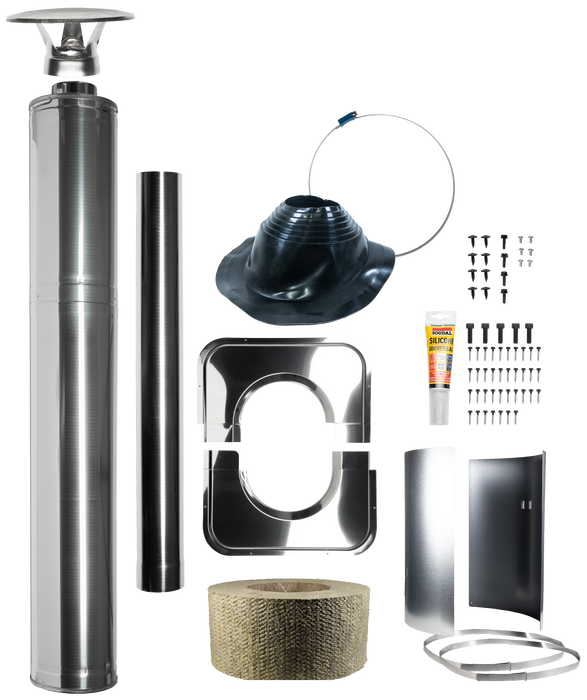

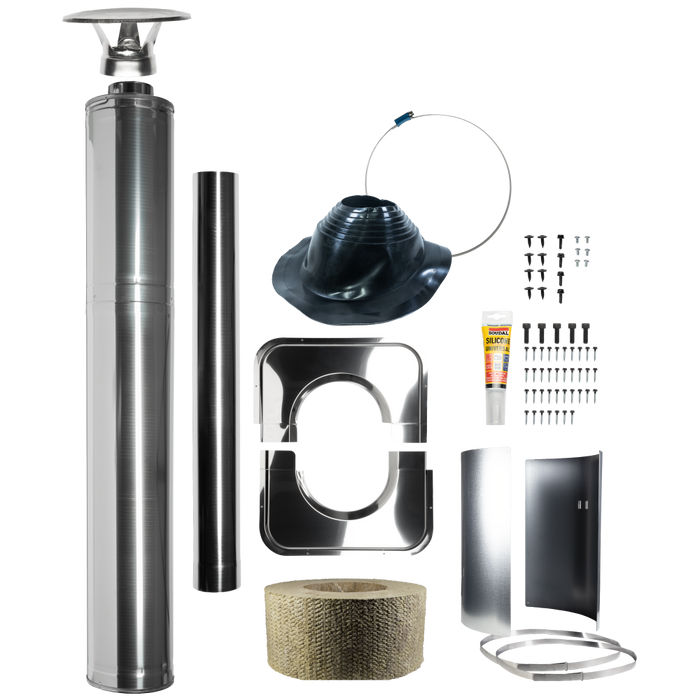

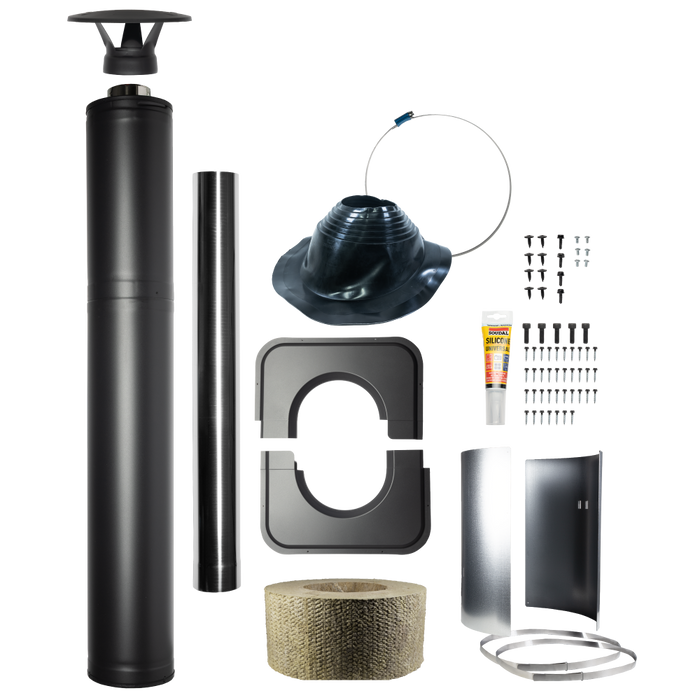

• Harvia Chimney Package (WHP1500 or WHP1500M)
  Complete 59" insulated chimney kit with smoke pipe, mounting hardware, utility box, and through-ceiling or wall installation parts.
  Certified (UL-103 HT) for wood-burning sauna use. Choose stainless-steel or black-coated finish.

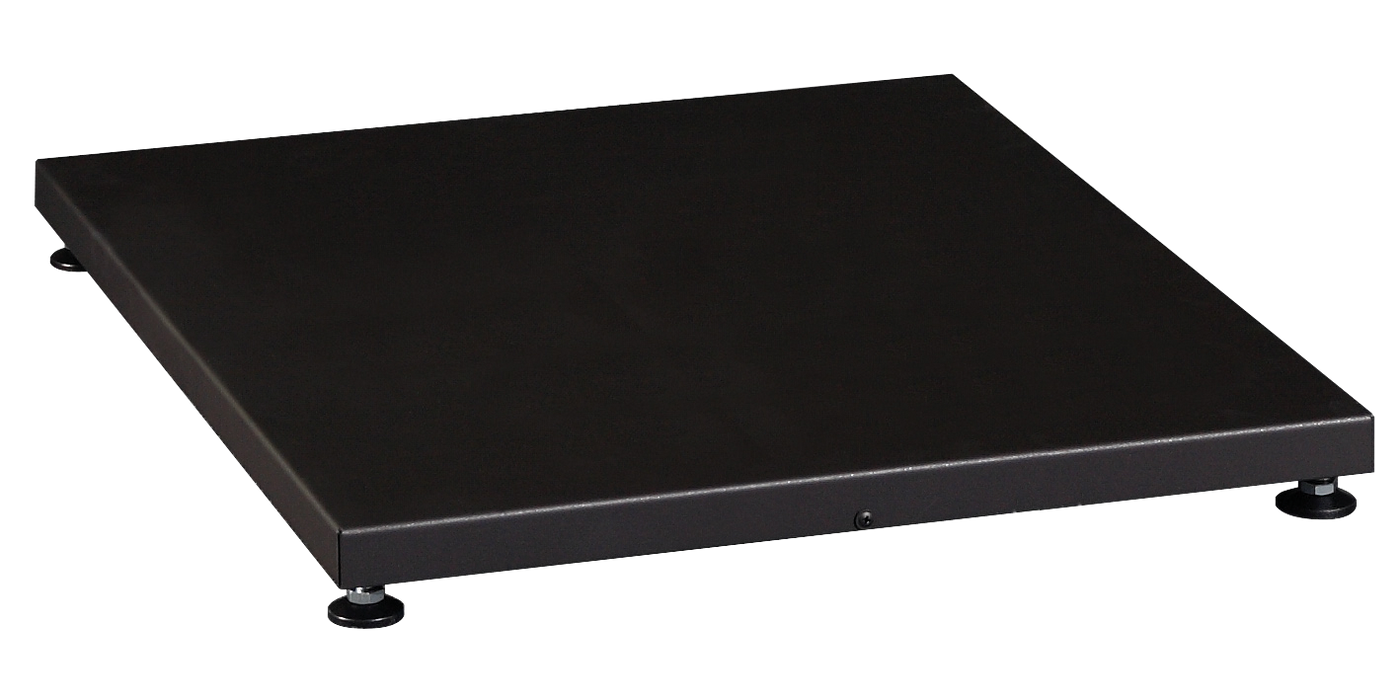

• Harvia Protective Bedding Floor Plate (WL110)
  Black-steel heat-shielding base plate that protects the floor beneath the stove from heat radiation and sparks while matching the stove’s finish.

Everything you need to safely vent your Harvia wood-burning sauna stove - all in one box. No extra parts are required for a standard through-ceiling installation in a typical 8–9 ft sauna room.

✅ What’s Included

• 1 × 1500 mm (59") insulated chimney section — runs from the ceiling through the roof
• 1 × starting/smoke pipe — connects the stove to the insulated chimney (included)
• Mounting bracket & support/utility box
• Roof flashing & rain/termination cap
• Ceiling pass-through with insulation components
• All required clamps, adapters & hardware
• Installation manual

Certification: UL-103 HT (U.S. & Canada), high-temperature listed.

📏 Height & Fit

• The 59" insulated chimney section starts above the ceiling.
• The included smoke pipe runs from the top of the stove up to the ceiling.
• Typical total installed height ≈ 9–10 ft from floor to chimney cap (ideal for most 8–9 ft rooms).
• Need more height? Add Harvia extensions (WHP500 / WHP1000) above the insulated section.
• Doing a through-wall install? Use a Harvia Wall Thimble Kit (sold separately).

🧱 Compatibility

• Designed for Harvia wood-burning stoves including Linear 16 included in this package.
• Direct connection to the stove outlet — no extra adapters needed for standard setups.
• Suitable for indoor or outdoor saunas.

🎨 Finish Options

💡 In Plain Terms

You get everything from the stove to the roof cap in this kit. No guessing, no extra adapters, no hidden parts. For taller roofs, add an extension. For wall exits, use a wall thimble kit.
