Mr.Steam ButlerFlex Linear Steam Shower Control Package

by MrSteam

SKU BFLBKPC

$3,098.00 - $3,325.00

$3,098.00

$3,098.00 - $3,325.00

$3,098.00

Quantity

Description

Features

Package Includes

Specifications

Manuals

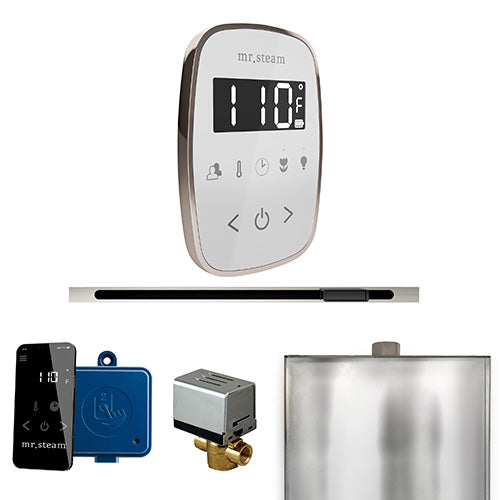

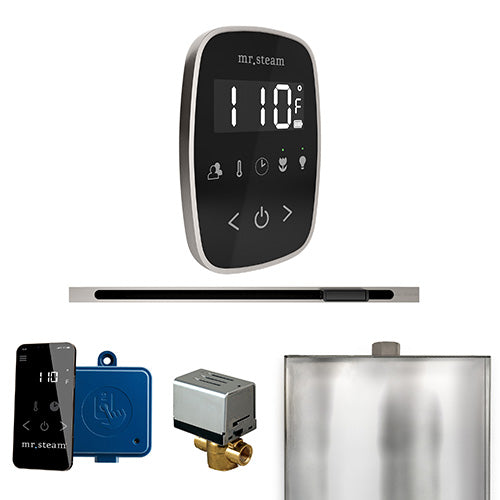

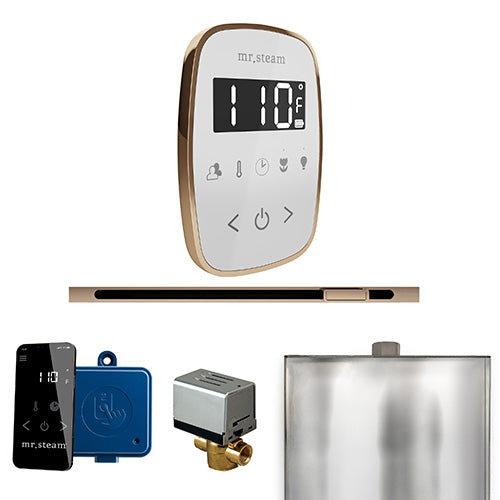

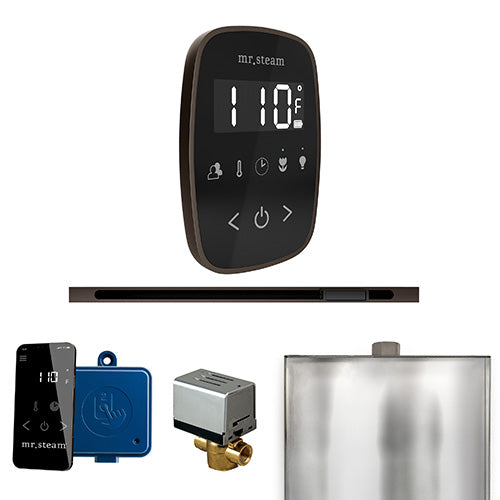

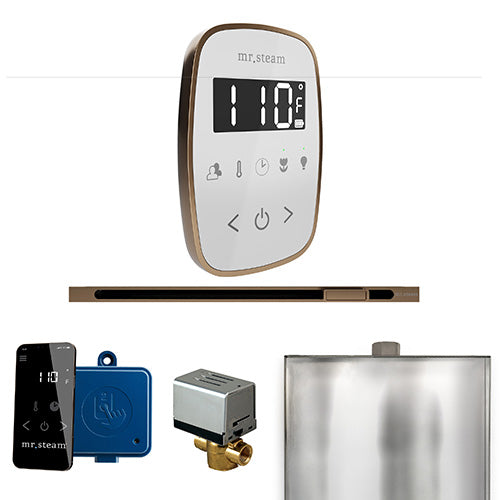

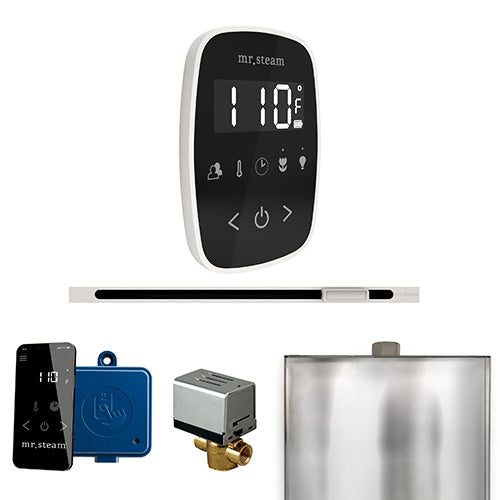

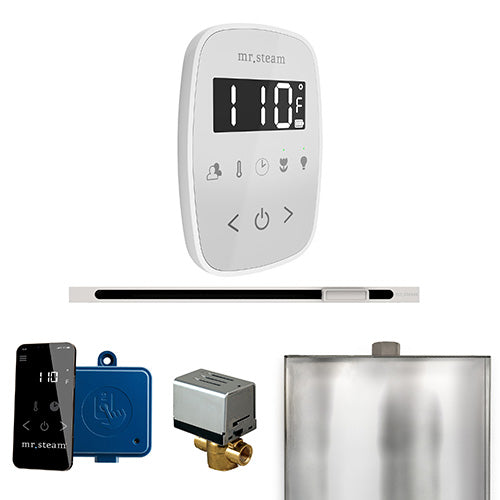

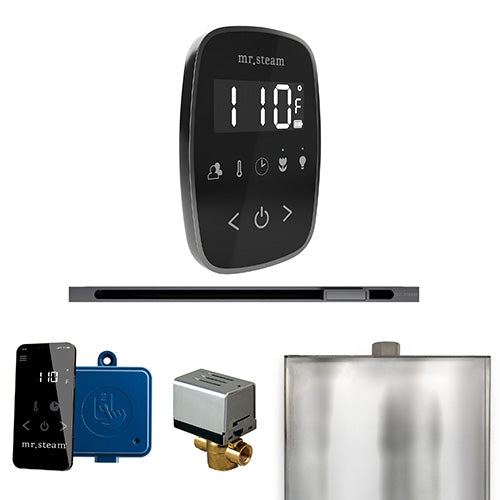

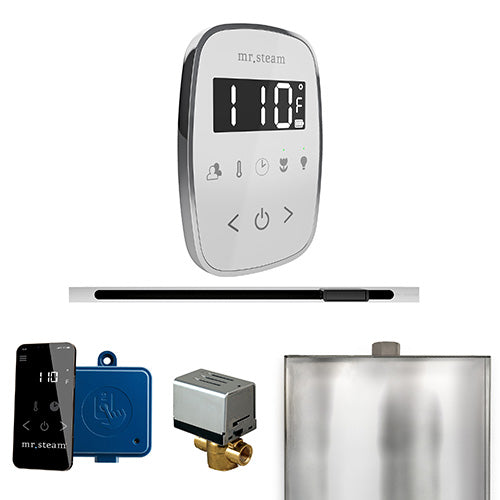

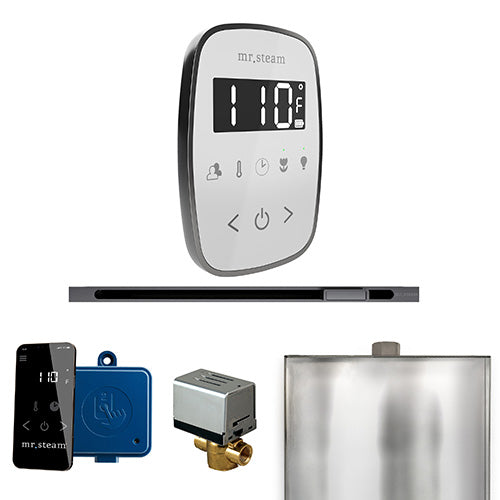

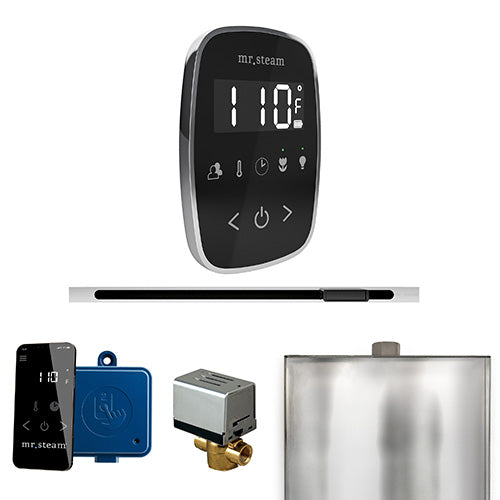

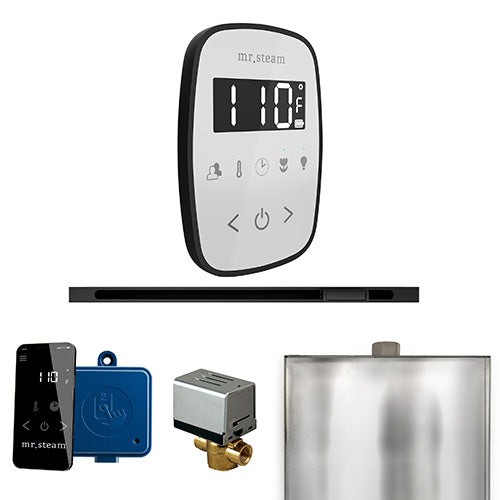

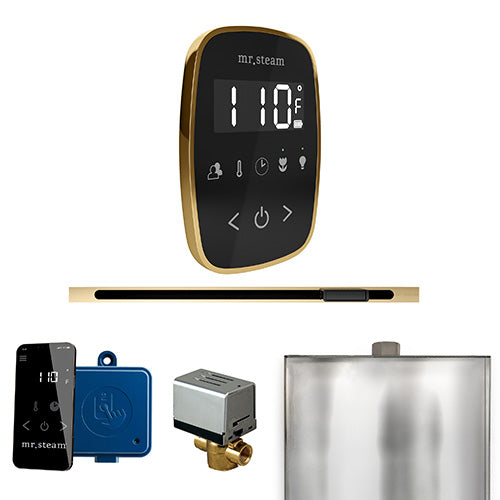

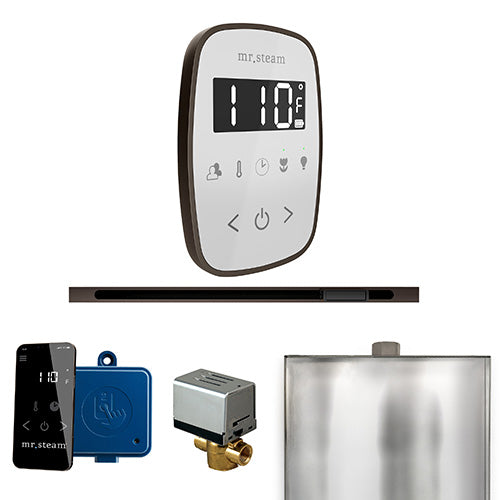

ButlerFlex Steam Shower Control Package w/ TempoFlex Control and Linear SteamHead

The Mr.Steam ButlerFlex Linear Control Package offers desired flexibility and easy access to steam. This collection comes complete with a TempoFlex Control, Linear SteamHead, SteamLinx Module and Mobile App, AutoFlush System, and Condensation Pan.

TempoFlex Control

Wireless control with flexible charging and installation
Capacitive touch panel with 2 user presets
Display characters are 1” tall for clear legibility
Controls AromaTherapy and ChromaTherapy Systems
Easy time adjustment (2-60 minutes) and temperature adjustment (80-120°F)
Rechargeable sealed battery holds a charge for up to 6 months
Control can be installed wired for constant power or charged outside the steam room by plugging the control into a wall adapter
Mount to nearly any hard surface or flush to the wall
Dimensions: 3.8"W (10 cm) x 0.9"D (2 cm) x 5.3"H (14 cm)
Limited 2-year warranty

Linear SteamHead

Slender, horizontal opening disperses steam evenly and smoothly
Diverter directs steam upwards and reduces the steam emission zone
Series of patented interior baffles delivers whisper quiet steam
Has a visible AromaTray for essential oils
No assembly of moving parts required
Installs flush to the wall and nearly disappears in the grout line
Dimensions: 16"W (41 cm) x 4.8"D (12 cm) x 9.3"H (24 cm)
Limited 2-year warranty

SteamLinx Module and Mobile App

Allows you to start your steam shower from anywhere
Operates on/off, time, and temperature using a smartphone or mobile device
Works with Just Ask Alexa when skill is enabled
Dimensions: 2.8"W (7 cm) x 0.9"D (2 cm) x 3.4"H (9 cm)
Limited 2-year warranty

AutoFlush System

Automatic self-cleaning system that promotes a long and healthy life for steam generators
Flushes old water and impurities after every steam shower
Quietly flushes through a 1/2" electronically-activated valve
Simple plug and play installation
Dimensions: 3.3"W (8 cm) x 2.5"D (6 cm) x 4.3"H (11 cm)
Limited 2-year warranty

Condensation Pan

Protects against potential water leaks
Will trap and redirect the water to a predetermined area
Goes on a solid level surface beneath the steam generator
Built-in brackets raise the steam generator above the bottom of the pan
Dimensions: 25"W (64 cm) x 9"D (23 cm) x 1.5"H (4 cm)
Limited 2-year warranty

TempoFlex Control

Control
Decorative Trim
Wireless Receiver
3 ft Control Cable
30 ft Power Cord
Power Supply
Mounting Screws
Surface Mount Bayonet
Tube of Silicone Sealant
Installation and Operation Manual
2-Year Limited Warranty

Linear SteamHead

SteamHead
Faceplate
Diverter
AromaTray
Silicone Sealant
2-Year Limited Warranty

SteamLinx Module and Mobile App

SteamLinx A with Integral Cable
SteamLinx B with Ethernet Cable
Power Cable and Supply
2-Year Limited Warranty

AutoFlush System

AutoFlush Valve with Cord
2-Year Limited Warranty

Condensation Pan

Condensation Pan
2-Year Limited Warranty

Model

BUTLERFLEX LINEAR PKG

Model	TEMPOFLEX
Construction Material	Plastic, Metal, Electronics
Installation Type	Hardwired and Wireless
Display	LCD
Interface	Capacitive Touch Panel
Width	3.8" (10 cm)
Depth	0.9" (2 cm)
Height	5.3" (14 cm)
Weight	4 lbs (2 kg)

Model	STEAMHEAD 104480
Construction Material	Brass
SteamHead Connection	3/4" NPT
Width	16" (41 cm)
Depth	4.8" (12 cm)
Height	9.3" (24 cm)
Weight	9.2 lbs (4 kg)

Model	STEAMLINX
Construction Material	Plastic, Metal, Electronics
Installation Type	Hardwired
Width	2.8" (7 cm)
Depth	0.9" (2 cm)
Height	3.4" (9 cm)
Weight	2 lbs (1 kg)

Model	AUTOFLUSH MS81500E
Construction Material	Aluminum and Brass
Drain Valve	1/2" NPT
Width	3.3" (8 cm)
Depth	2.5" (6 cm)
Height	4.3" (11 cm)
Weight	2.3 lbs (1 kg)

Model	CONDENSATION PAN 103867
Construction Material	Stainless Steel
Drain Fitting	3/4" NPT
Width	25" (64 cm)
Depth	9" (23 cm)
Height	1.5" (4 cm)
Weight	3 lbs (1 kg)

Installation Manual

Product Details

TempFlex

The TempoFlex is the steam shower control with the convenience of RF wireless connectivity with no cable needed to the steam generator. You can enjoy flexible and easy installation along with an elegant design and an intuitive user interface, along with a built-in rechargeable battery.

Not tethered by cables. You can use the TempoFlex control up to 60 feet away from the generator, making it great for retrofit installations.

Linear SteamHead

Mounts flush to the wall, and creates a wide ribbon of smooth, silent steam that brings a new level of performance and aesthetic pleasure to your steam shower. Linear SteamHead creates an inverted waterfall of steam, cascading gently upwards into your shower quietly and condensation-free.

SteamLinx Module and Mobile App

SteamLinx gives you the convenience of controlling your steam shower from anywhere using smartphone or mobile device. Start your steam shower, adjust temperature, duration and stop it with a tap. When you enable the SteamLinx skill for Alexa, you can just ask Amazon Alexa.

AutoFlush System

Your steam generator is the most important component of your steam shower. Protect your investment with AutoFlush. AutoFlush is a MrSteam exclusive product. It’s an automatic self-cleaning system that promotes a long, healthy life for steam generators by automatically flushing the generator of sediment two hours after every steambath. We automate everything in the background, so no work is needed after every steam shower session. AutoFlush assures that you get clean steam every time.

Condensation Pan

Sitting under our e-Series Generators, the Condensation Pan protects from potential water escape. Just locate the condensation pan on a solid level surface and place the steam generator inside the condensation pan. Insure the steam generator is level as condensation pan drains by gravity.
