6kW Steam Shower Generator Package

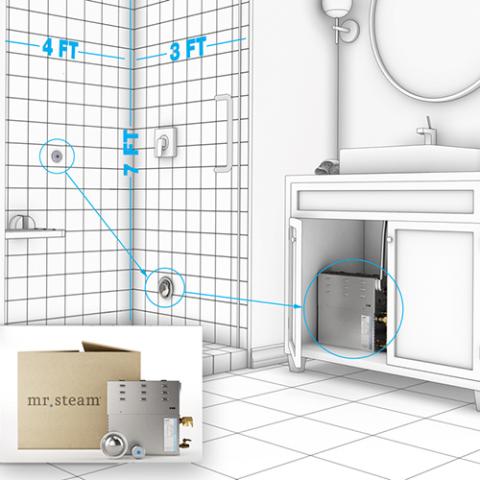

Built with a stainless steel tank and electronic water-level control, the Steam@Home generator combines durability with safety, including low-voltage circuitry, ASME-certified safety valve, and a full port drain valve. The SteamStart control offers simple, timed steam sessions, and the generator can be installed up to 60 feet away from the enclosure for flexible placement.

Operating with under a gallon of water per 20-minute session, the Steam@Home series is an efficient, eco-friendly solution that fits your lifestyle. UL-listed and backed by trusted manufacturing, it brings daily wellness into your routine with ease and elegance.

Required installation tools and enclosure not included

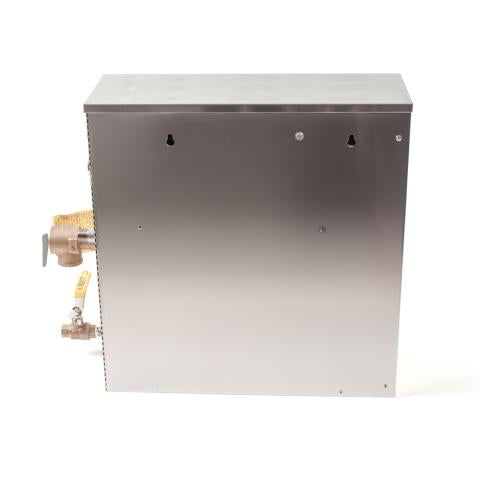

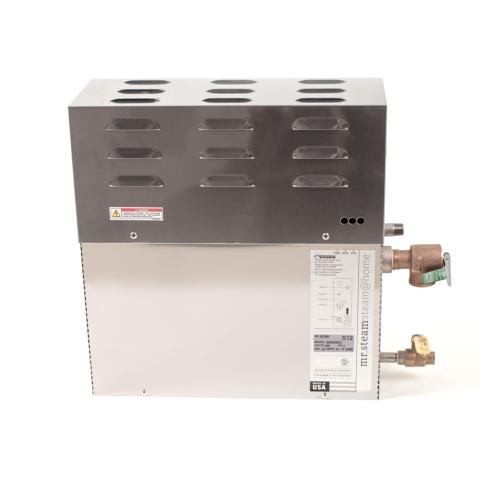

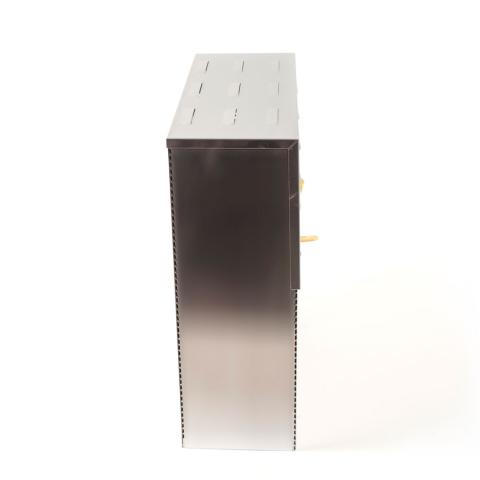

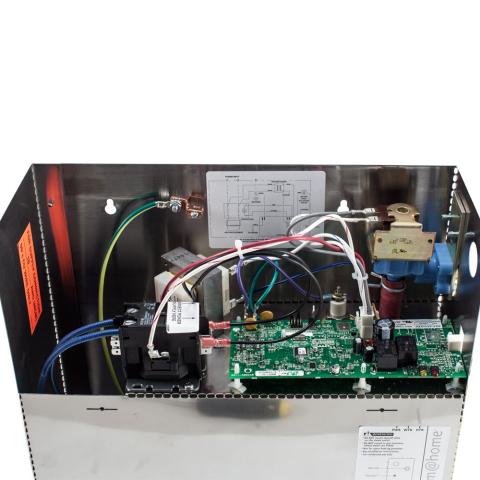

SAH Series Steam Generator:

Unified stainless steel water reservoir
Robust electronic components for longevity
Precise electronic water-level control
Stainless steel construction for durability
Safe low voltage control circuits
Integrated 24-volt circuit for added safety
Compliant ASME safety valve
Efficient full port drain valve
Certified by UL, CSA, and CE for reliability

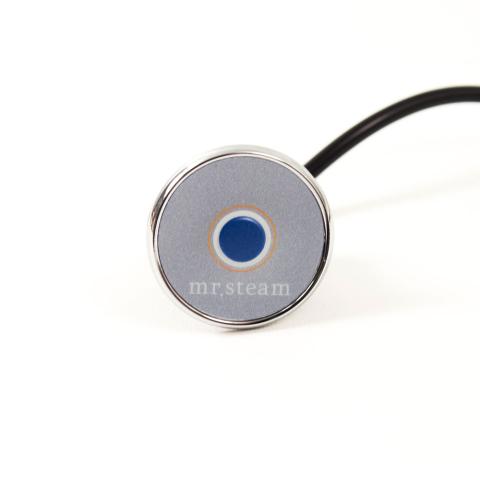

SteamStart Control:

Simple on/off functionality
Set 20-minute steam cycles
Sleek, low-profile design
Elegant polished chrome finish
Flexible installation, suitable for inside or outside steam/shower enclosures
Operates on low voltage for safety

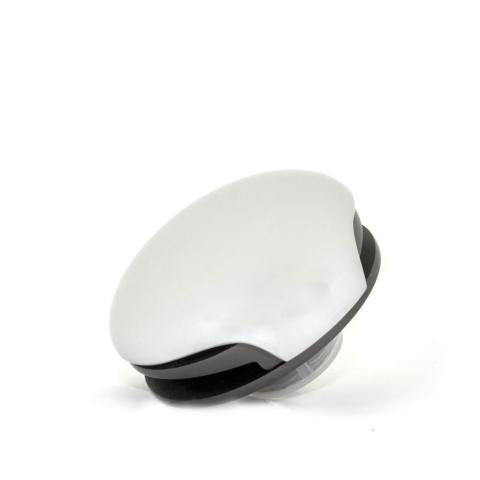

Cool-to-the-Touch Steamhead:

Designed for quieter steam release
Built-in reservoir for aroma-infused steaming
Streamlined design with polished chrome aesthetic

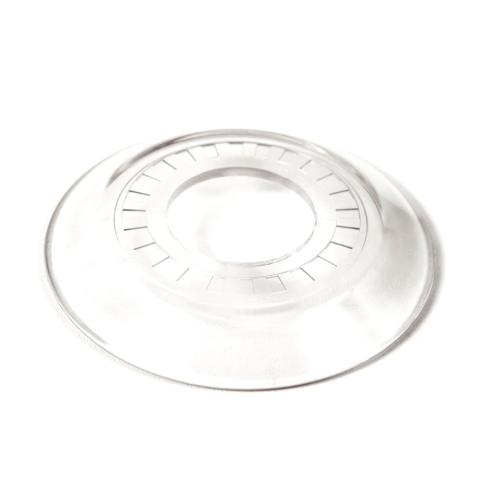

Acrylic Shield:

Constructed from clear, durable Lexan
Slim and transparent at 1/8” thickness
Measures 4-3/8" in diameter, 1/2" depth
Features a 1-5/8” diameter mounting hole for easy installation

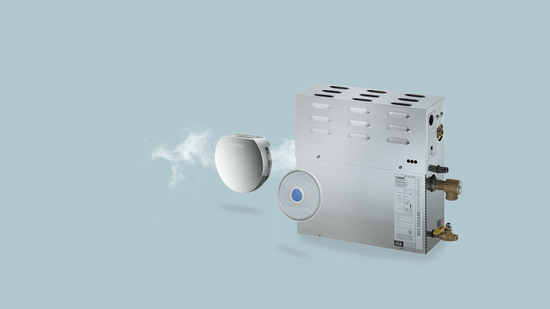

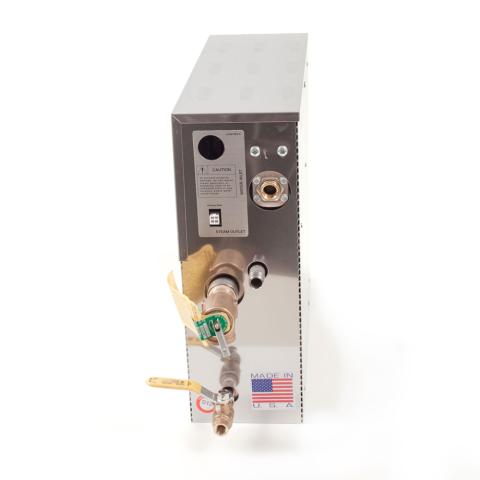

Steam bath generator
SteamStart surface-mounted control, 1-1/2” diameter, 1/8” deep
3-Pin Control cable, 30’ long, hard-wired to control with plug-in connector
Cool-to-the-Touch steamhead, 1/2” NPT, 3-1/16” diameter, 1-13/16” deep
Acrylic shield, 4-3/8" diameter, 1/2" deep
RTV silicone sealant, .5 ounce tube
Installation and operation manual
Limited warranty

Model	SAH6000

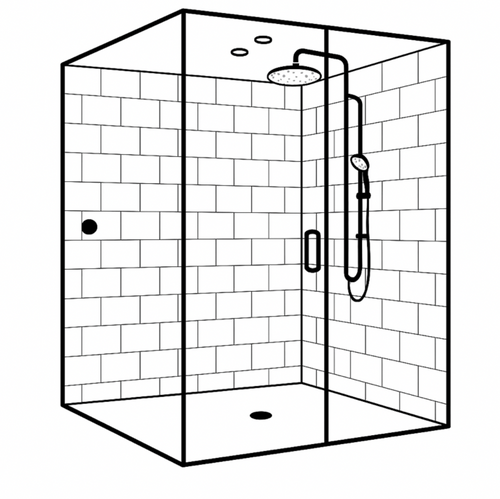

Maximum Adjusted Cubic Feet	150
Kilowatt Rating (KW)	6.0 KW
Shipping Weight	25 lbs
Electrical Specifications	(refer to Electrical chart)
Water Supply Connection	3/8" NPT
Generator Steam Line Connection	3/8" NPT
Steam Head Connection	1/2" NPT
Drain Connection	1/4" NPT
Safety Relief Valve Connection	3/4" NPT
Safety Relief Valve PSIG	15 PSIG
Control "Rough In" Cut Out	7/8" Diameter
Generator Control Connection	3-Pin, Plug-In Connector
Generator Control Cable	30', 3 Conductor, 24 AWG, Shielded Cable
Width	14-3/8"
Depth	5-3/16"
Height	14-7/8"
Adjustable Time	No
Session Timing	20 minutes

Mr. Steam Steam@Home 6kW Steam Generator Package Details

Superior Steam

At the core of every MrSteam generator is an exclusive microprocessor-based operating system that functions as the brain of the unit. This smart controller continuously monitors temperature, water levels, and performance metrics to ensure consistent steam delivery and rapid response times.

The result? An indulgent, spa-quality steam experience that adapts to your preferences and maintains optimal conditions from start to finish.

Superior Quality

MrSteam generators are built from the inside out with surgical-grade stainless steel—an ultra-durable, naturally corrosion-resistant material trusted in medical and marine applications. This premium construction extends the life of the unit, resists scale buildup, and ensures it stands up to the humid, high-demand environment of daily steam use.

Even the heating elements are housed in stainless steel for added durability, making the generator one of the longest-lasting on the market.

Whisper Quiet

Say goodbye to noisy plumbing or disruptive hammering sounds. MrSteam’s proprietary water solenoid system controls water flow with precision, ensuring your generator operates with minimal noise.

No buzzing. No knocking. Just a peaceful, immersive atmosphere that lets you focus on relaxation, mindfulness and rejuvenation.

Mr. Steam Feel Good Inc.

Steam shower benefits that promote health and wellness

Get Your Personalised Offer Today

Get your personalized discount by using our quote form.

Here's how:

Locate the Quote Form: You'll find it on every product page by scrolling down.
Add Products as You Browse: It functions similarly to a shopping cart. Simply add items to your quote as you expolore our products.
Finalize Your Quote: Once you're finished, click 'Send' to submit your request.
We will send a quote for you.

Need a bit more help? Read our Quote Form Tutorial or click the chat icon in the bottom right corner for live assistance.

Name*Required

Email*Required

Location*Required

Phone (Optional)Required

Message

Add Product to Quote Request:

Product Quantity

Thank you. We have received your quote request and will be in touch soon.

Setting up

Delivery

Your Mr Steam Generator will be shipped as a FedEx or UPS package. The package, or packages will be delivered to your door. You will receive a tracking number as soon as your order has been shipped out. All our shipments are fully insured.

Electrical & Plumbing Requirements

Mr Steam 6kW Generator will require 240V/1PH power line (ask about other options). You will need an 30 Amp circuit breaker and your electrician needs to use wire size 8 AWG. You can see the full electrical and plumbing requirements for the system here.
