Mr. Steam XButler Linear Control Package

by MrSteam

SKU BXLWHPC

$2,646.00 - $2,786.00

$2,646.00

$3,150.00

$3,150.00 - $3,360.00

$3,150.00

Quantity

Description

Features

Package Includes

Specifications

Manuals

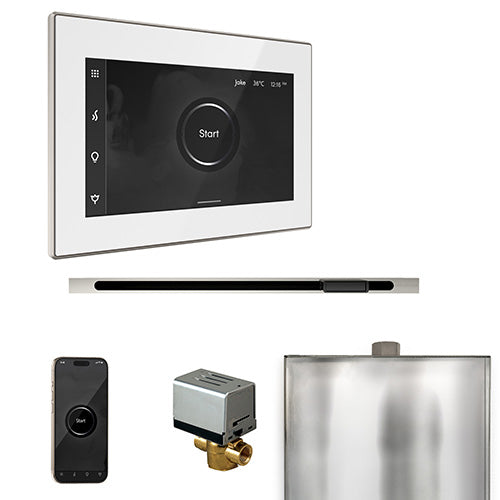

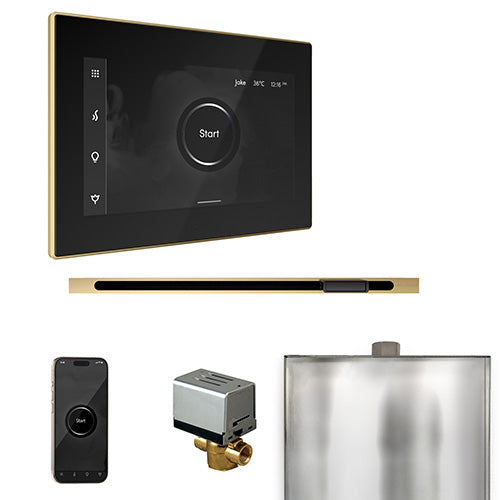

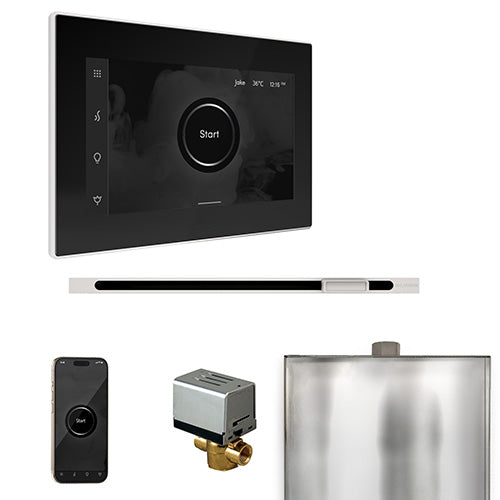

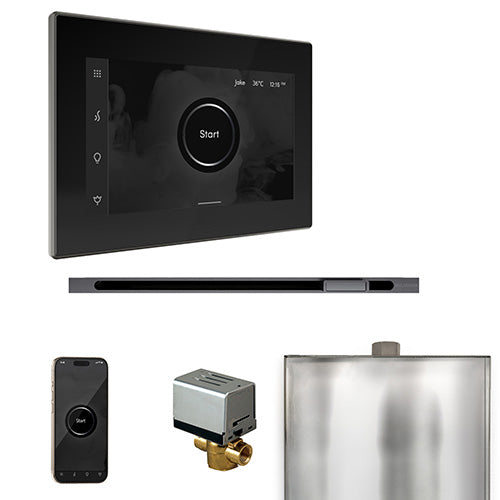

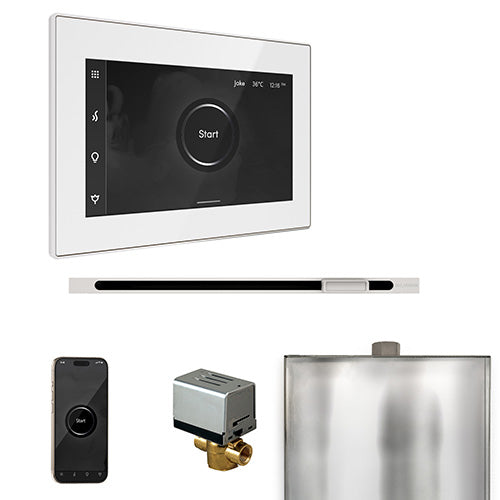

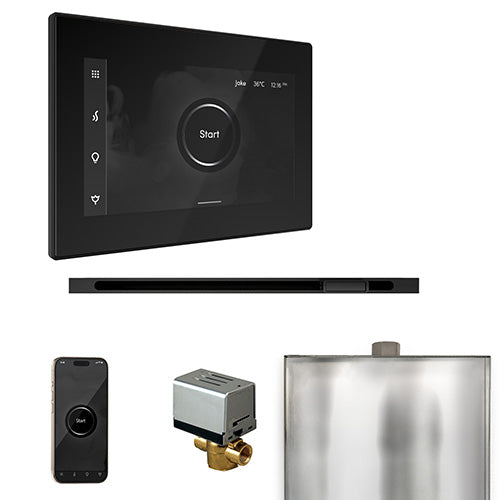

XButler Steam Shower Control Package w/ iSteamX Control and Linear SteamHead

Take total control over every detail of your steam shower experience with the Mr.Steam XButler Linear Control Package. This collection comes complete with an iSteamX Control, Linear SteamHead, AutoFlush System, and Condensation Pan. Personalize your temperature, settings, and steam therapies at the touch of a finger.

iSteamX Control

Award-winning, full color LCD touchscreen with total control over all features of your steam shower experience
Automatically preheat your steam shower so it's ready when you are
Available in 6 different languages: English, French, Spanish, Italian, German, and Russian
Access time, temperature, apps, profiles, and steam therapies with the touch of a finger
Create custom profile settings for up to 8 users
Listen to your favorite music with aux, radio, or bluetooth
Have peace of mind with temperature timed shut-offs and passcode protection
Transform your senses with optional chromatic lighting and aromatic infusers
Waterproof touchscreen is so technologically advanced it can tell the difference between a drop of water and your finger
Manufactured in strong, durable, and long-lasting solid brass
Wall-mount installation
Dimensions: 7.6"W (19 cm) x 0.6"D (2 cm) x 5.2"H (13 cm)
Limited 2-year warranty

Linear SteamHead

Slender, horizontal opening disperses steam evenly and smoothly
Diverter directs steam upwards and reduces the steam emission zone
Series of patented interior baffles delivers whisper quiet steam
Has a visible AromaTray for essential oils
No assembly of moving parts required
Installs flush to the wall and nearly disappears in the grout line
Dimensions: 16"W (41 cm) x 4.8"D (12 cm) x 9.3"H (24 cm)
Limited 2-year warranty

AutoFlush System

Automatic self-cleaning system that promotes a long and healthy life for steam generators
Flushes old water and impurities after every steam shower
Quietly flushes through a 1/2" electronically-activated valve
Simple plug and play installation
Dimensions: 3.3"W (8 cm) x 2.5"D (6 cm) x 4.3"H (11 cm)
Limited 2-year warranty

Condensation Pan

Protects against potential water leaks
Will trap and redirect the water to a predetermined area
Goes on a solid level surface beneath the steam generator
Built-in brackets raise the steam generator above the bottom of the pan
Dimensions: 25"W (64 cm) x 9"D (23 cm) x 1.5"H (4 cm)
Limited 2-year warranty

iSteamX Control

Control
iSteamX Hub
30 ft Control Cable with Mini-Din
30 ft iSteamX Cable with Screw Connector
Power Supply
Tube of Silicone Sealant
Installation and Operation Manual
2-Year Limited Warranty

Linear SteamHead

SteamHead
Faceplate
Diverter
AromaTray
Silicone Sealant
2-Year Limited Warranty

AutoFlush System

AutoFlush Valve with Cord
2-Year Limited Warranty

Condensation Pan

Condensation Pan
2-Year Limited Warranty

Specifications

XBUTLER LINEAR PKG

Model	ISTEAMX
Construction Material	Plastic, Metal, Electronics
Installation Type	Hardwired
Display	Full Color LCD
Interface	Touchscreen
Width	7.6" (19 cm)
Depth	0.6" (2 cm)
Height	5.2" (13 cm)
Weight	7 lbs (3 kg)

Model	STEAMHEAD 104480
Construction Material	Brass
SteamHead Connection	3/4" NPT
Width	16" (41 cm)
Depth	4.8" (12 cm)
Height	9.3" (24 cm)
Weight	9.2 lbs (4 kg)

Model	AUTOFLUSH MS81500E
Construction Material	Aluminum and Brass
Drain Valve	1/2" NPT
Width	3.3" (8 cm)
Depth	2.5" (6 cm)
Height	4.3" (11 cm)
Weight	2.3 lbs (1 kg)

Model	CONDENSATION PAN 103867
Construction Material	Stainless Steel
Drain Fitting	3/4" NPT
Width	25" (64 cm)
Depth	9" (23 cm)
Height	1.5" (4 cm)
Weight	3 lbs (1 kg)

Installation Manual

Technical Specs

Warranty

Product Details

Next Level Control

The sophisticated iSteamX combines WIFI connectivity with unparalleled control over all features of your steam shower experience. Now, you can connect the serenity of a steam shower with your favorite playlist or podcast, then select chroma lighting, infuse aromatics, and elevate your steam bathing experience to a heightened level of sensory bliss.

Linear SteamHead

Mounts flush to the wall, and creates a wide ribbon of smooth, silent steam that brings a new level of performance and aesthetic pleasure to your steam shower. Linear SteamHead creates an inverted waterfall of steam, cascading gently upwards into your shower quietly and condensation-free.

ISTEAMX APP

Fully control your experience with your smartphone or mobile device using the iSteamX App.

AutoFlush System

Your steam generator is the most important component of your steam shower. Protect your investment with AutoFlush. AutoFlush is a MrSteam exclusive product. It’s an automatic self-cleaning system that promotes a long, healthy life for steam generators by automatically flushing the generator of sediment two hours after every steambath. We automate everything in the background, so no work is needed after every steam shower session. AutoFlush assures that you get clean steam every time.

Condensation Pan

Sitting under our e-Series Generators, the Condensation Pan protects from potential water escape. Just locate the condensation pan on a solid level surface and place the steam generator inside the condensation pan. Insure the steam generator is level as condensation pan drains by gravity.
