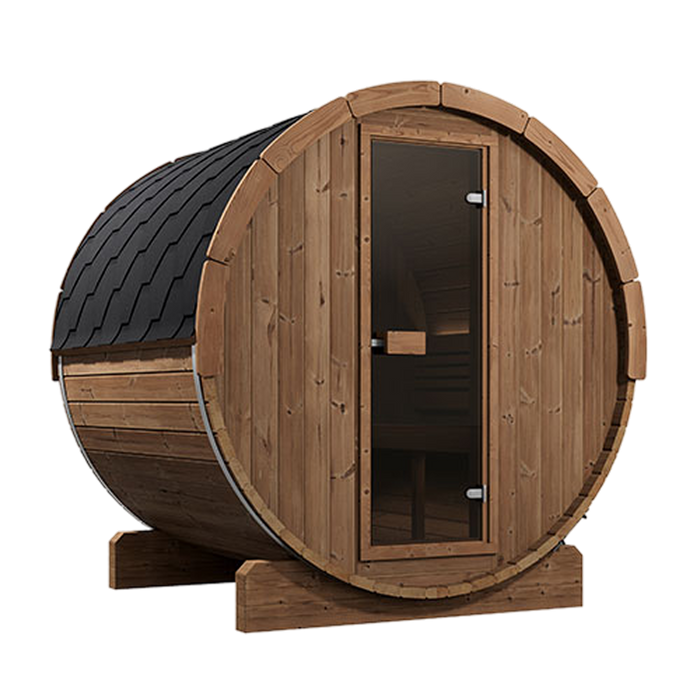

ERGO Series Sauna Barrel 71"D x 81"H (Diameter)
Model E7
SaunaLife barrel saunas were made to solve all the problems that barrel sauna goers have been experiencing in the past. These common inconveniences in traditional barrel saunas include flooding, inconvenient seat structure, and very low ceiling, to mention a few. SaunaLife barrel saunas solve all of these long-term barrel sauna issues.
When it comes to suitable sauna heaters for this barrel sauna, we have multiple options for you. You will need a sauna heater that is 6 kW. The Sauna Heater recommends HUUM Drop 6 for this sauna.
Other suitable electric sauna heaters;
-
Harvia SP60E (Great steam, advanced controls)
-
Harvia KIP60W (Advanced controls)
-
Harvia KIP60B (Cheapest, reliable, simple)
Something to note when it comes to your sauna heater choice, is that we recommend you to get the weather proof electrical enclosures for your control panel and the electrical module, when you go with a sauna heater that has external controls. These enclosures ensure that no matter how harsh the conditions get, your electrical equipment will be protected. If you place your sauna in a way that it won't be exposed to weather conditions, you won't need these accessories.
Sauna Gear 300 will be your choice when you want to protect your sauna heater’s control panel.
Sauna Gear 302 is the electrical enclosure to protect your main module & other electrical equipment, mounted on the back of your barrel sauna.
This sauna will be delivered to your curbside as a DIY kit. Here’re some important things to account for when considering the placement of this barrel sauna:
-
You want to have a leveled surface under the barrel sauna. You can place the sauna on concrete blocks or strips that have compressed gravel underneath. You can use geotextile under the sauna to prevent the growth of any grass. Sauna can also be placed on your terrace or balcony. Just make sure you have a leveled surface under the sauna that can handle the weight.
-
You need an electrical line for your sauna heater to the placement of the sauna. Most sauna heaters require 240V.
-
You will need a 120V electrical line for the lights of this sauna.
-
Constructing the sauna yourself is simple if you’re a handyman. You can get a good idea of the installation from the installation manual.
-
All sauna heaters require the electrical work to be performed by a certified electrician.
You will see all optional accessories on the carousel further down this page.
Something we recommend for everyone, would be the barrel sauna floor. This levels the floor of the sauna, and significantly enhances your sauna experience.
For additional lighting, you can get the EMood Ergo, which is made out of the same wood as the barrel sauna itself.
For lighting the outside of the barrel, you can have SaunaLife E7 Sconce+ outdoor sauna light set.
For treating the outside wood of your sauna, you can apply SaunaLife Sauna Wax. You will also be able to modify the color of your sauna with the sauna wax, when choosing other than standard clear color for it.
You can treat your sauna benches with SaunaLife Sauna Paraffin Oil, and protect them from moisture, dirt, and humidity by applying the oil.
Keep your sauna clean with SaunaLife Sauna Cleaner, specifically designed to be used with SaunaLife saunas wood materials.
When it comes to throwing water onto your sauna heater, to create steam (löyly), you can get either SaunaLife Accessory Package 5 (includes Bucket, Ladle, Hygrometer and Thermometer, Black) or SaunaLife Accessory Package 6 (includes Sauna Bucket Set with Wood Ladle and Thermometer either black or white).
Mentioning one more extra accessory, you can look into SaunaLife SaunaZone bluetooth speaker and sauna bucket with lights.

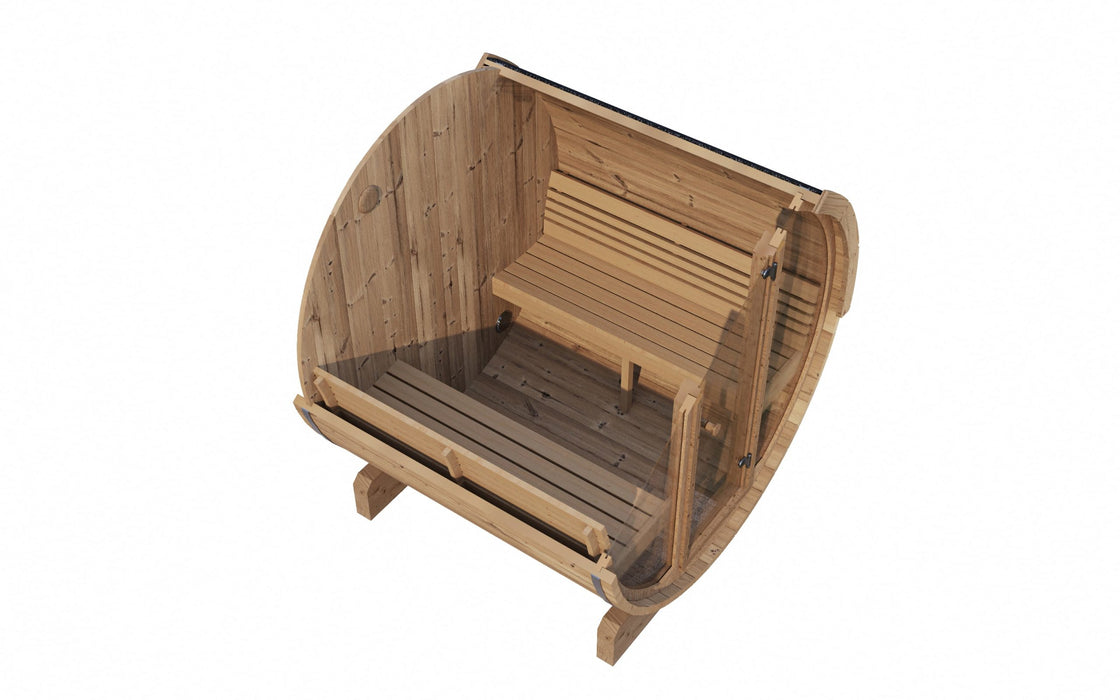

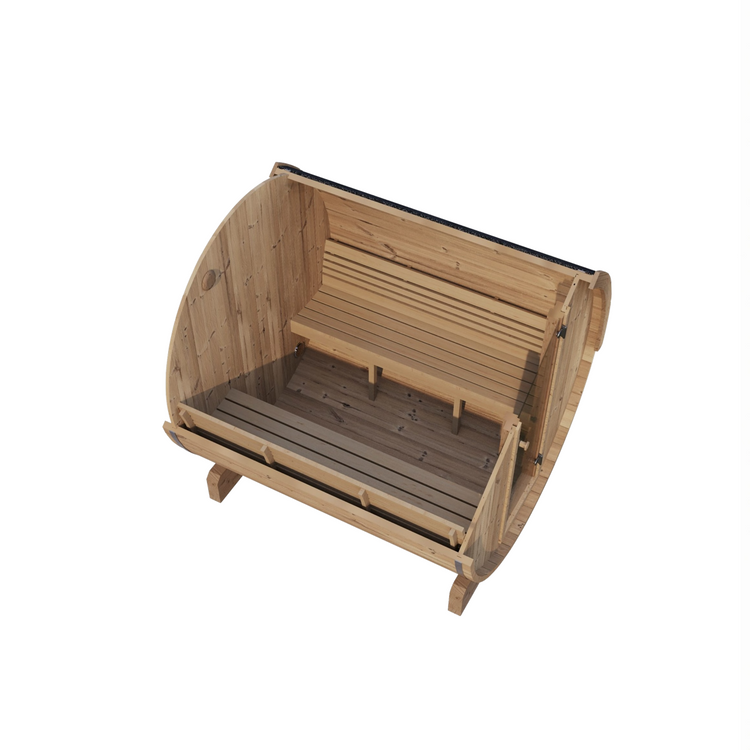

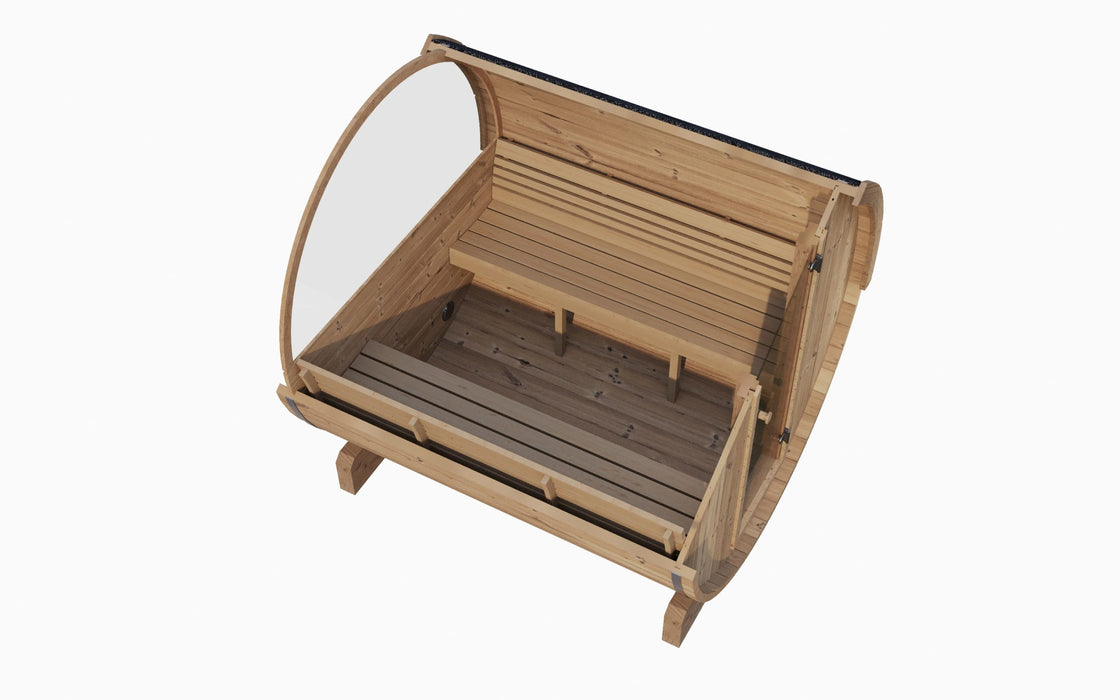

Model E7 Sauna Barrel
- Thermo-Spruce materials (lasts up to 2X longer than Cedar)
- Designed for ergonomic sauna bathing experiences
- Spacious 6’-5” interior height
- Engineered for simple DIY installation (1-day, 2-persons)
- Industry-leading wall, bench, and backrest material thicknesses
- Superior thermal resistance (R-value)

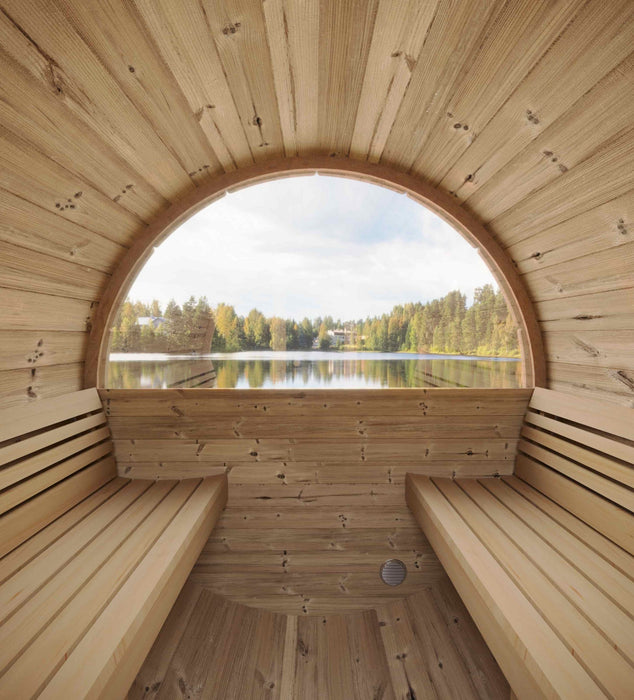

- Curved Thermo-Aspen benches for bather comfort
- Premium arched backrest for all body sizes
- Dual floor drains for effective water elimination

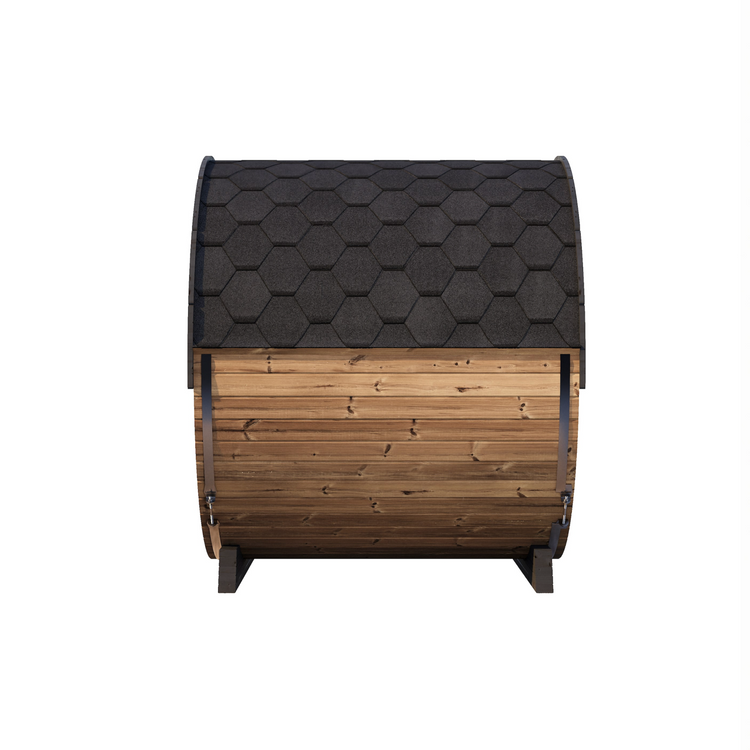

- Black shingle roof kit for weather-tight installation
- Roof drip edge for rainwater management
- Tempered bronze glass (5/16” thick)
- Enhanced bathing ambiance with E SCONCE+ and E MOOD lighting upgrades
- Heavy-duty stainless steel barrel bands (1-7/8” wide x 1/8” thick)
- Paraffin oil is provided to enrich and preserve sauna barrel luster
- Extra Thermo-Spruce staves to ensure success (2)
- Sauna heater guard
- Intake and exhaust air vents

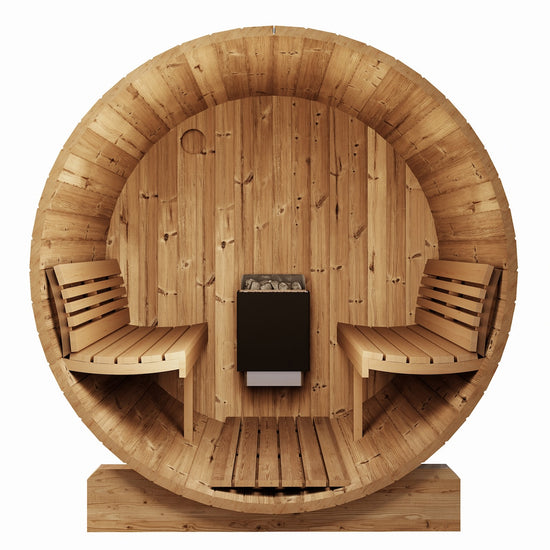

- Exterior dimensions - 71” long and 81” diameter
- Interior dimensions - 63” long and 77” diameter
- Up to 4 bathers
- Designed by SaunaLife and handcrafted in Northern Europe
Thermo-Spruce Barrel Sauna Advantages
- Lasts up to 2X longer than Cedar
- Superior thermal resistance (R-value)
- Eco-friendly
- Chemical-free
- Golden color
- Ideal sauna use (stable)
- Rustic tight knot charm

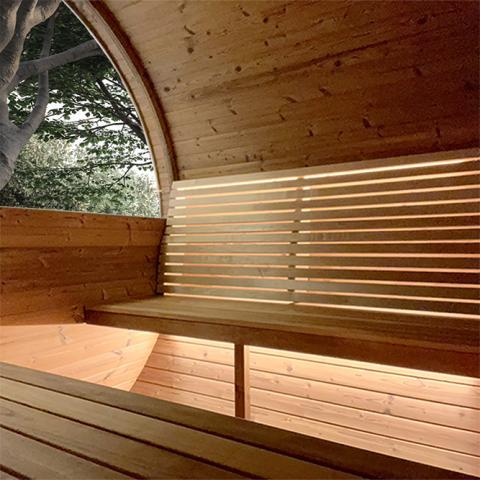

White LED Light Bar System with Wi-Fi App
- Dottless white glowing LED lighting
- Wi-Fi, app-based operation capability
- Wireless handheld remote (IP20) and control mounting cradle
- Water and heat-rated LED and wire connections (IP67)
- Flush or articulating mounting clips to set the ideal scene
- Low voltage (24-volt DC) operation for bathing safety
- 30’ light cable (IP67) to suit all installation applications
- Expandable to control up to four white LED light sources (see E SCONCE+ Package)
Model E7 Sauna Barrel
- Full-length Thermo-Spruce staves (1.65” thick)
- Benches of Thermo-Aspen (1.1” bench tops, no knots)
- Backrest of Thermo-Aspen (1.1” rests, no knots)

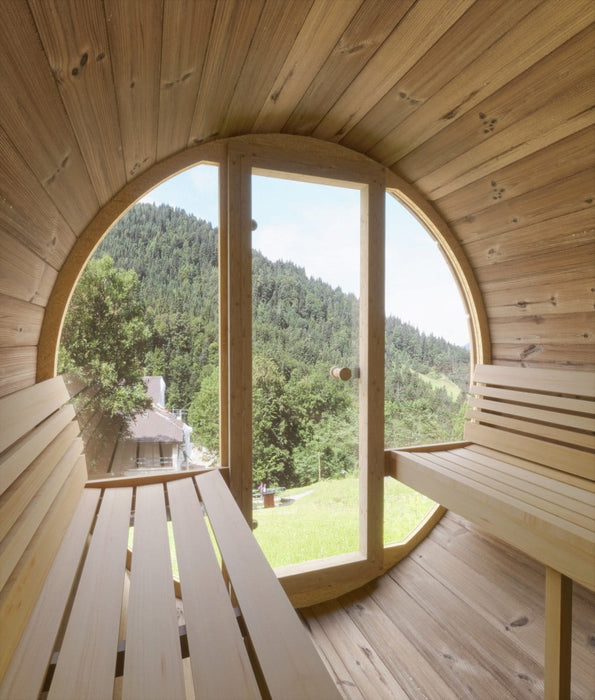

- Tempered bronze glass door
- Stainless steel barrel bands
- Black roof shingle kit
- Spruce cradles
- Spruce fascia boards
- Air intake and exhaust vents
- Extra staves (2)
- Fastener kit
- Paraffin oil, 16.9 oz bottle (500ml)
- Installation instructions
White LED Light Bar System with Wi-Fi App
- White LED light bar (1)
- Wi-Fi, app-based operation
- Wireless handheld remote & mounting cradle
- 90W power supply
- Driver
- 30’ light cable
- Mounting clips, articulating (3)
- Mounting clips, flush (3)
- Installation instructions
| Model |
Model E7 |
| Barrel Material |
Thermo-Spruce |
| Bench & Backrest Material |
Thermo-Aspen |
| Interior Dimensions |
63"L x 77"Diameter |
| Exterior Dimensions |
71"L x 81"Diameter |
| Bench Depth |
17.8" |
| Stave Thickness |
1.65" |
| Glass Thickness |
5/16" |
| Shipping Dimensions |
78"L x 43"W x 33"H |
| Weight |
1212 lbs |
|
|
| Lighting |
|
| Operating Voltage |
24VDC |
| Wattage |
11.32W |
| Connection Type |
IP67 Twist Lock 2 Pin |
| IP Rating |
IP67 |
| Certification |
cETLus/SGS/TUV |
| Power Supply |
|
| Input Voltage |
120VAC |
| Output Voltage |
24VDC |
| Rated Power |
90W |
| Certification |
UL, CE, FCC |
SaunaLife saunas have a standard shipping rate of $950 for deliveries to the 48 contiguous states, covering the transportation of both the sauna heater and any additional accessories.
For shipping rates to other locations, please contact us directly for a personalized quote.
About Shipping Times: The shipping time varies depending on the specific SaunaLife model and current demand. While some models are readily available in stock, others are made to order. To obtain a precise estimate of the shipping time for your chosen model, feel free to contact us.
All shipments are conducted via LTL (less-than-truckload) services, necessitating the scheduling of a special delivery appointment. You are contacted to coordinate this appointment in advance of your shipment.
If you need any further details, don't hesitate to contact us.
